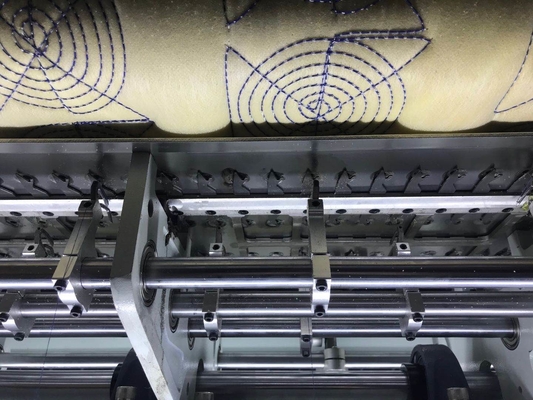

Panasonic Drivers Chain Stitch Quilting Machine Multi Needle For Bedding

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

Model Number

YXN-94-3D

Moving Style:

Multi Needle Quilting Machine

Condition:

Dimension(l*w*h):

500*165*200cm

Max Sewing Speed:

1200rpm

After-sales Service Provided:

Video Technical Support

Power(w):

7.5 Kw

Certification:

Quilting Width:

2450 MM

Highlight:

Chain Stitch Quilting Machine 1200rpm

Bedding Chain Stitch Quilting Machine

Panasonic Drivers Computerized Quilting Machine

Product Description

Application:

It is widely used for mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers,decoration and more.

Quilting machine Features:

New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
360°Multi-span and independent patterns, automatic thread trimming function.
Self-developed “Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
The spindle, X, Y axis all adopt high-power servo motor
Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes

Technical Parameter:

Model
Dimension(LWH)	540016002300 mm
Quilting width	2450mm
Needle rows	3
Space between needle rows	3"+2" ; 3"+3"
Space between needle	25.4mm
X-axis movement displacement	305mm
Quilting thickness	80mm
Stitch length	1-12mm
Production speed	60-230 M/H
Model of needle	21#,22#,23#,24#
Quilting speed	1200R/Min
Voltage	380V/50HZ 220V/60HZ
Power	8KW
Weight	5500kg
