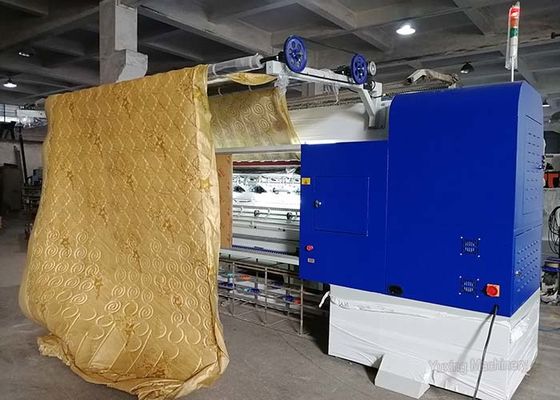

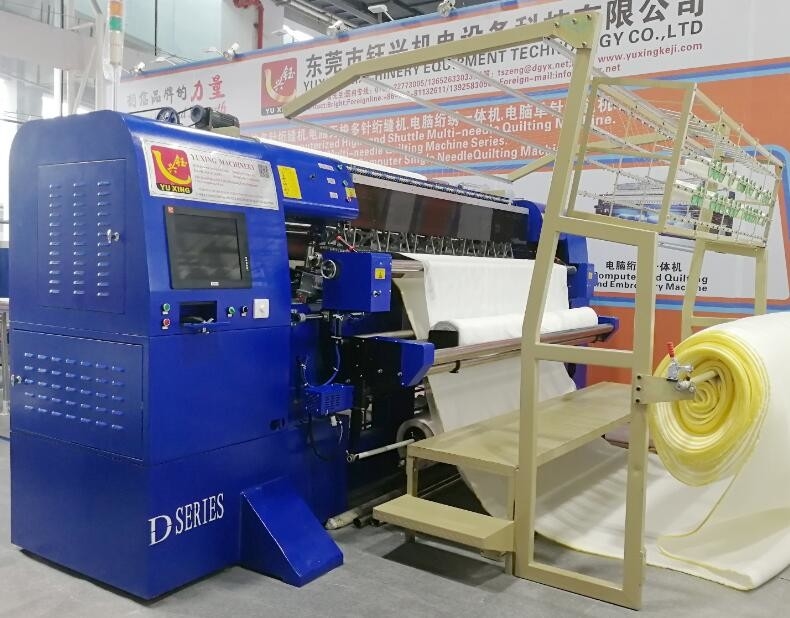

1200 RPM Computerized Non Shuttle Quilting Machine Mattress Making Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 15 Days
Payment Method: T/T, L/C
Supply Capacity: 20 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE
Model Number
YXN-94-3D
Measurement:
500*165*200 CM
Quilting Width:
240 CM
Max Rolling Speed:
1200 RPM
Weight:
6500 KG
Output:
10-250 M/H
Maximum Thickness:
8cm
Warranty:
1 Year
Application:
Mattress/home Textile Factory
Highlight:

1200r/min Mattress Making Machine

,

250M/H Mattress Making Machine

,

8cm Mattress Making Machine

Product Description

Computerized Non-shuttle Quilting Machine Mattress Making Machine For Quilting Mattress Cover



Quilting Machines Function:

  1. This mattress making machine is a kind of multi needle quilting machine for mattress production. .
  2. With much more output comparing with Single Needle Quilting Machines.
  3. Adopting Non-shuttle quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
  4. Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
  5. Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and adjust speed by computer
  6. CE Certificate of quilting machine
  7. The self developed computer control system, no need to adjust the press plate's position when the thickness of quilting material varies
  8. Strong functions of Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
  9. Fault detection function for ease of determining the running state of the machine at work time.
  10. Newly upgrade computer system and reinforced machine body support machine works with maximum 1200rpm with low noise.
  11. Main motor and x, y motors are driven by servo system.

Specification:

Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3D(2"+3")
Size(L*W*H) 500*165*200cm
Weight 6500kg
Quilting width 240cm
Needle bar space 50.8,76.2,(2"+3")
Quilting thickness 80mm
Rolling speed 600-1200r/min
Output 10-180m/hour
Needle type #21-#24
X-axis movement 41cm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW



1200 RPM Computerized Non Shuttle Quilting Machine Mattress Making Machine 0



Pattern
1200 RPM Computerized Non Shuttle Quilting Machine Mattress Making Machine 1
