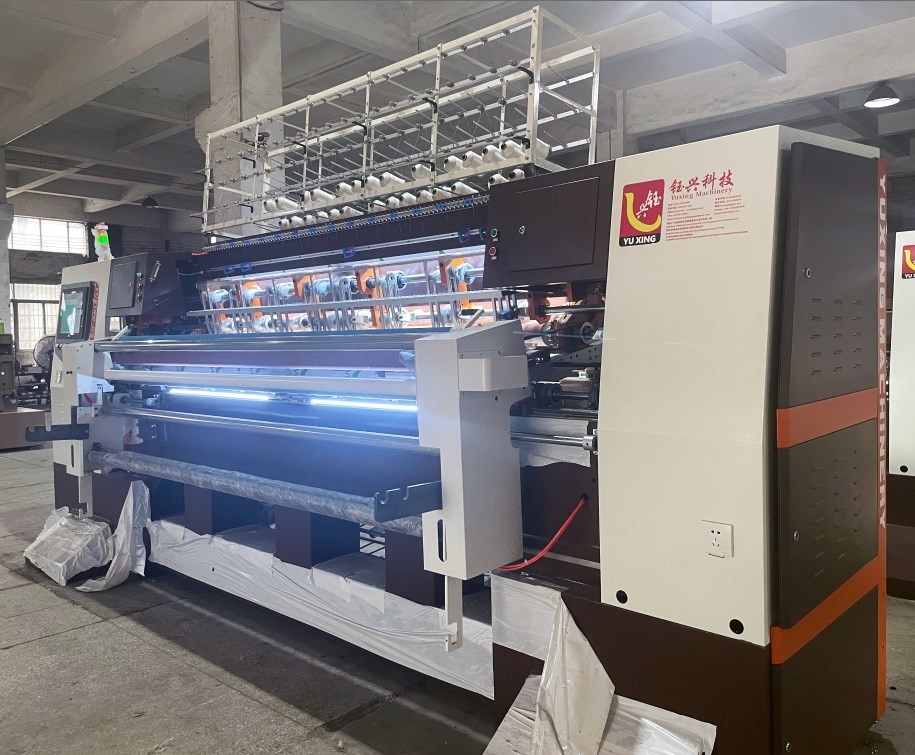

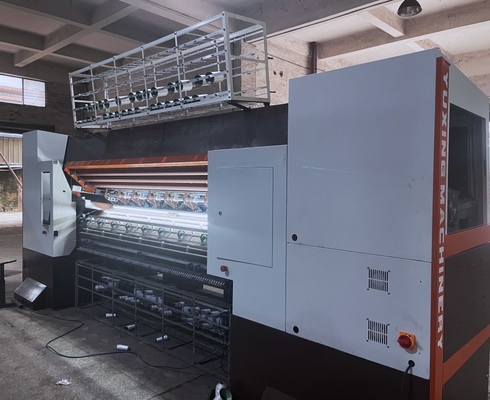

1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose

1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose

1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose
1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose
1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXN-94-2DS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Machine Size: 5*1.65*2 M Quilting Width: 2.4 M
Max Rolling Speed: 1500 RPM Weight: 7.5 T
Warranty: One Year Needle Row: 2 Rows
Output: 10-300 M/H Stitch: 2-8 MM
High Light:

2.4M Mattress Making Machine

,

8.5KW Mattress Making Machine

,

8cm Mattress Making Machine

Computer Non-Shuttle Sponge Mattress Making Quilting Machine With 1 Year Warranty



Quilting Machines Function:



1. Adopt the advanced process design.
2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and steady-going control system.
4. X,Y motors are driven by Panasonic servo motor system, and principal axis takes frequency ports system.
5. Testing the working state of all sensors and computer in real time.
6. Auto-stop system when the bottom or upper threads broke by infrared. Auto lift needle and adjust the speed by computer.
7. Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
8. 360°quilting and limitless multi-span and independent quilting(can quilting jump patterns).
9. Computer can be in store 1000 patterns with 300 patterns already existing, and with pattern editing function.
10. Low noise, s
teady running, high speed, very thick material with precise quilting.
11. Multi-span and independent quilting with pattern compensation function.
12.Have ringing notice when start machine.



Specification:



Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-2DS(3")

Size(L*W*H) 5*1.65*2m
Weight 7.5 T
Quilting width 2.4m
Needle bar space 50.8,76.2,76.2(2"+3"+3'')
Quilting thickness 8cm
Rolling speed 600-1500r/min
Output 10-300m/hour
Needle type #21-#24
X-axis movement 304cm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 8.5KW

1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose 01500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose 1

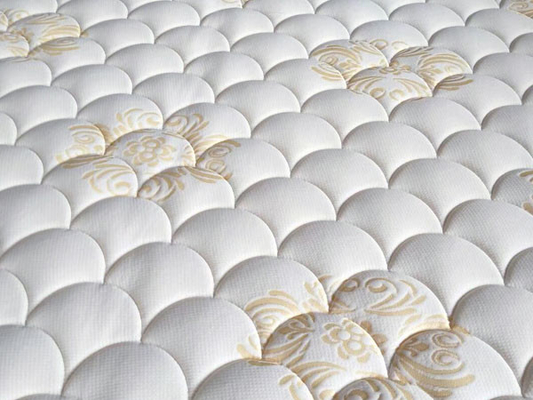

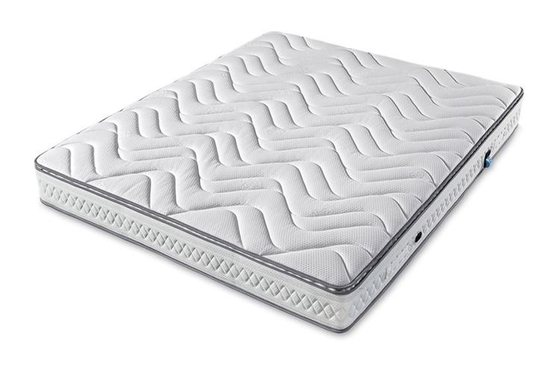

Pattern
1500 RPM 300 M/H Non Shuttle Sponge Mattress Making Machine For Quilting Purpose 2
