| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-128-3D |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 SETS/MONTH |
| Yield/hour: | 10-240M | Max Sewing Speed: | 1200 R/MIN |
|---|---|---|---|
| Quilting Width: | 3.2M | Size: | 559*175*170 |
| Weight: | 6.6 Tons | Machine Type: | Lock Stitch Quilting Machine |
| High Light: | 3.2M Multineedle Quilting Machine,1200RPM Multineedle Quilting Machine,128 Inch Multineedle Quilting Machine |
||

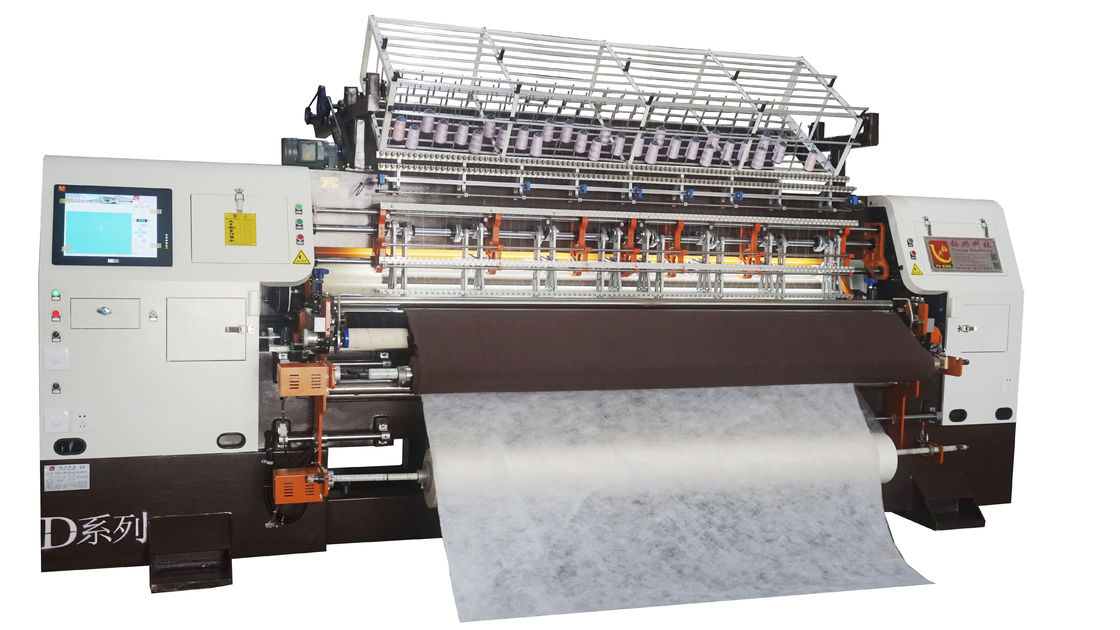

128 Inch 1200RPM Multineedle Professional Quilting Machine With Automatic Refueling
Upgrade place based on C series lock stitch quilting machine.
Application
high quality garments, quilts,blanket, quilt covers, pajamas, handbags, pillow case, car seat cover, etc.
Parameter
| Model No. | YXS-128-3D |
| Dimension(L*W*H):cm | 559*175*170 |
| Gross Weight | 6.6 tons |
| Quilting width | 320cm |
| Needle bar space | 152.4(3"+3") |
| Thickness of quilting | ≤5cm |
| Work speed | maximum 1200r/min |
| Speed of production | 10-240m/hour |
| Model of Needle | Groz needle #14, #16,#19 |
| X-axis movement | 25.4cm |
| Needle space | 2.54cm |
| Stitch length | 2mm-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Total Power | 7500KW |
Warranty: 1 year since the ship arriving at the destination port.
1) During warranty, the machine parts(except wearing parts, like needle, shuttle,shuttle bar, etc) can be replaced for free.
2) Under warranty, if computer broken, it can be replaced for free, but first need to send computer back for checking.
3) We provide additional consumable parts with machine delivery. Pls refer to packing list.
4) Offer life-time after service. Any time if machine has problem, client can contact us with photos and small video to describe malfunction. We will help to solve problem by online guide. If problem very serious, we can send technician to client's factory for repairing as request. Client needs to
bear visa cost, round trip flight tickets, accommodation, and labor cost USD100/day.
Pattern show
