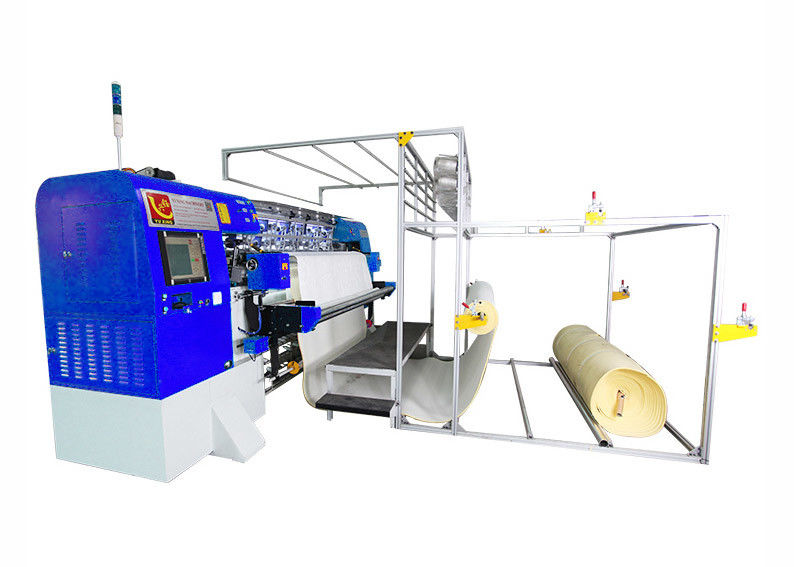

Chain Stitch High Speed Quilting Machine For Mattress Cover

Chain Stitch High Speed Quilting Machine For Mattress Cover

    • Chain Stitch High Speed Quilting Machine For Mattress Cover
    • Chain Stitch High Speed Quilting Machine For Mattress Cover
    • Chain Stitch High Speed Quilting Machine For Mattress Cover
  • Chain Stitch High Speed Quilting Machine For Mattress Cover

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE, ISO9001
    Model Number: YXN-94-3D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 20 Days
    Payment Terms: T/T, L/C
    Supply Ability: 20 SETS/MONTH
    Contact Now
    Detailed Product Description
    Dimension: 5000*1650*2000 MM Quilting Width: 2400 MM
    Rolling Speed: 600-1200 RPM Quilting Thickness: 80 MM
    Tack And Jump: Yes Auto Stop: Yes
    High Light:

    Computerized High Speed Quilting Machine

    ,

    2400mm Quilting Machine

    ,

    1200r/min Quilting Machine

    1200RPM High Efficiency Chain Stitch Computer Quilting Machine For Mattress Cover



    D series computer chain stitch multi needle quilting machine has 3 different models based on different needle bar space.

    • YXN-94-3D(3"+3"): common model, 3 needle bar, 1st and 2nd needle bar distance is 3", 2nd and 3rd needle bar distance is 3". It can make design size like: 1 inch, 2 inch, 3 inch, 6 inch, 12 inch.
    • YXN-94-3D(2"+3"): 3 needle bar, 1st and 2nd needle bar distance is 2", 2nd and 3rd needle bar distance is 3". It can make design size like: 1 inch, 2 inch, 3 inch, 5 inch, 10 inch.
    • YXN-94-4D(2"+3"+3"): 4 needle bar, 1st and 2nd needle bar distance is 2", 2nd and 3rd needle bar distance is 3", 3rd and 4th needle bar distance is 3". It can make design size like: 1 inch, 2 inch, 3 inch, 5 inch, 6 inch, 8 inch, 12 inch, 16 inch.

    Upgrade place:

    YXN-94-3D is upgrade model from YXN-94-3C. Speed is higher, machine structure and body is stronger.
    YXN-94-3D use new upgrade software. X Y use Fuji servo motor, main motor also use servo motor.



    Specification:

    Model YXN-94-3D(3"+3") YXN-94-3D(2"+3") YXN-94-4D(2"+3"+3")
    Size(L*W*H) 5.0*1.65*2.0m 5.0*1.65*2.0m 5.0*1.65*2.0m
    Weight 6500kg 6500kg 6500kg
    Quilting width 2.4m 2.4m 2.4m
    Needle bar spacing 3bars (3"+3" ) 3bars (2"+3" ) 4bars (2"+3"+3")
    Quilting thickness 8cm 8cm 8cm
    Rolling speed 600-1200r/min 600-1200r/min 600-1200r/min
    Throughput 10-250m/hour 10-250m/hour 10-250m/hour
    Needle type #21, #22, #23,  #24 #21, #22, #23, #24 #21, #22, #23, #24
    X-axis movement 410mm 410mm 410mm
    Needle spacing 25.4mm 25.4mm 25.4mm
    Stitch length 2mm-8mm 2mm-8mm 2mm-8mm
    Rated voltage(AC) 380V/50HZ 220V/60HZ 380V/50HZ 220V/60HZ 380V/50HZ 220V/60HZ
    Power 7.5KW 7.5KW 7.5KW



    Function:

    1. Adopt the advance process design of machine.
    2. Needle bar and pressing block take the double rocker, avoid the materials be soiled by lube.
    3. High rigidity machine body, perfect protecting equipment and steady-going control system.
    4. X,Y motors and main motor are driven by servo system, .
    5. Test the work status of all sensors by computer.
    6. Auto-stop when the upper or bottom thread broken. Auto lift needle and adjust the speed by computer.
    7. Servo driver and frequency transducer auto fault tips, which is convenient to eliminate problems.
    8. 360 degrees and limitless multi-span quilting, tack and jump.
    9. Sready running, high speed, low noise, even very thick material, it can process precise quilting.
    10. Ringing alarm when start machine.

    Chain Stitch High Speed Quilting Machine For Mattress Cover 0

    Patterns:

    Chain Stitch High Speed Quilting Machine For Mattress Cover 1

    Machiney layout

    Chain Stitch High Speed Quilting Machine For Mattress Cover 2
