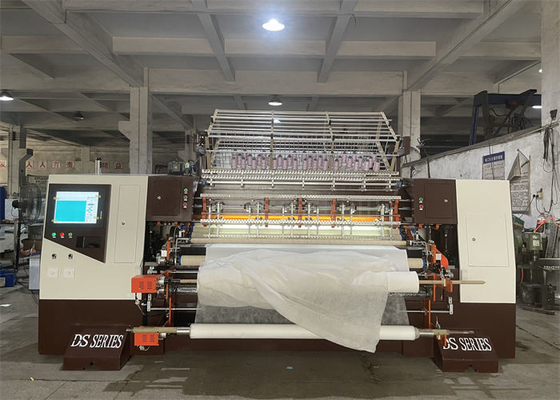

3 Needle Bar 1400 RPM Industrial High Speed Quilting Machine

3 Needle Bar 1400 RPM Industrial High Speed Quilting Machine

    • 3 Needle Bar 1400 RPM Industrial High Speed Quilting Machine
    • 3 Needle Bar 1400 RPM Industrial High Speed Quilting Machine
  • 3 Needle Bar 1400 RPM Industrial High Speed Quilting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE IOS9001
    Model Number: YXS-96-3E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: export packing
    Delivery Time: 15 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 Sets/month
    Contact Now
    Detailed Product Description
    Rolling Speed: Max.1400 RPM Yield: 10m-280m/hour
    Quilting Width: 240 CM Max Sewing Thickness: 5 CM
    X-axis Travel: 25.4 CM Stitch Length: 2mm-8mm
    High Light:

    1400 RPM High Speed Quilting Machine

    ,

    2.45m High Speed Quilting Machine

    ,

    280m/hour High Speed Quilting Machine

    Industrial Multi Needle High Speed Sewing Machine For Quilting 3 Needle Bar



    Multi needle high speed sewing machine strength

    • Angle of fuselage for easy shuttle change

    • Machine beamand fuselage are reinforced. Ensure machine running stably with higher speed

    • Big power servo motor, faster Machine speed, up to 1400r/min

    • Encoder program, machine information transmission more accurate

    • Automatic oil lubrication system to extend machine life-span.

    • Upgraded computer system, to bring a convenient user experience and easy to upgrade computer software any time.

    Function:

    • 360 random quilting, limitless multi-span and tack, jump function
    • Convenient pattern editing function.
    • Embroidery designs is compatible.
    • Ringing notice and infared system.
    • Auto lift needle and orientation brake system
    • Adjust speed and stitch by computer system.
    • Automatic refueling system·
    • Thread break dectation and auto stop system.

    Application: bed cover, bed sheet, quilt, blanket, comforter, bedspread, pillow case;  jackets, pajamas, night gown; cushions, seat covers, gloves, bags.



    Specification:

    Product Name Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
    Model YXS-96-3E
    Size(L*W*H) 4730*1750*1700MM
    Weight 6800kg
    Quilting width 2.45m
    Quilting thickness ≤50mm
    Main shaft speed 500-1400r/min
    Yield 10-280m/hour
    Suitable needle size #14, #16, #19
    X-axis stroke 20.4cm
    Distance between needles 1 inch
    Distance between needle bars  3E 7.62cm (3"+3" )
    Stitch length 2-8mm
    Rated Voltage(AC) 3 phase 380V/50HZ; 220V/60HZ;
    Power required 7.5KW



    Support and service

    1. Client can send material to test in our machine, and check the work effect.

    2. accept inspection and loading supervision before delivery.

    3. offer the good after sale service with fastest reaction.

    4. Video call and online support to help solve client's machine problems.

    5. Help to draw new patterns for clients, as long as client offer the design picture and size. The service is free.



    3 Needle Bar 1400 RPM Industrial High Speed Quilting Machine 03 Needle Bar 1400 RPM Industrial High Speed Quilting Machine 1
