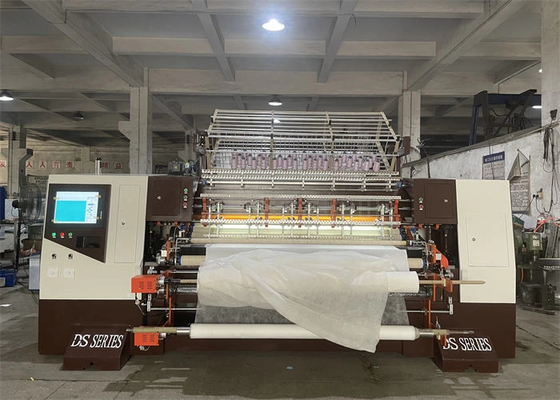

170cm 1400rpm Multi Needle High Speed Quilting Machine

170cm 1400rpm Multi Needle High Speed Quilting Machine

    • 170cm 1400rpm Multi Needle High Speed Quilting Machine
    • 170cm 1400rpm Multi Needle High Speed Quilting Machine
  • 170cm 1400rpm Multi Needle High Speed Quilting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE IOS9001
    Model Number: YXS-64-2DS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: export packing
    Delivery Time: 15 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 Sets/month
    Contact Now
    Detailed Product Description
    Max.Rolling Speed: 1400 RPM Output: 10m-280m/hour
    Max Sewing Thickness: 5 CM Quilting Width: 170 CM
    X-axis Travel: 25.4 CM Warranty: 12 Months
    High Light:

    170cm High Speed Quilting Machine

    ,

    280m/hour High Speed Quilting Machine

    ,

    1400r/min High Speed Quilting Machine

    14000rpm Multi Needle High Speed Quilting Machine 170cm Width



    E series computerized multi-needle quilting machine is the top configuration of Yuxing brand quilting machine. This high-speed quilting machine is upgraded on the basis of the D series quilting machine. The speed has been increased from 1200rpm to 1400rpm.

    The configuration has the following upgrades

    • Angle of fuselage for easy shuttle change

    • Bearing with lock core, stable and not easy to heat

    • Big Power Servo Power, Faster Machine Running, up to 1400r/min

    • Encoder program, machine information transmission more accurate

    • Fuselage and beam are reinforced. Machine is heavier and power is bigger.

    • Upgraded computer system, to bring a convenient user experience and easy to upgrade computer software any time.

    Quilting Machines Appropriate to: Garment, hat, bag, sleeping-bag, nightgown, and house adornments.



    Specification:

    Product Name Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
    Model YXS-64-2DS
    Size(L*W*H) 3935*1750*1700mm
    Weight 5300kg
    Quilting width 1.7m
    Quilting thickness ≤50mm
    Rolling speed 500-1400r/min
    Output 10-280m/hour
    Type of needle #14, #16, #19
    X-axis stroke 20.4cm
    Needle distance 1 inch
    Needle bar space 2E 7.62cm (3" )
    Stitch 0.2-0.8cm
    Voltage(AC) 380V/50HZ; 220V/60HZ; 3 phase
    Power required 5KW



    Function:

    1. 360 random quilting and limitless multi-span and tack and jump function
    2. Convenient pattern editing function. Embroidery designs is readable.
    3. Ringing notice and infared system makes the operation safer.
    4. Auto lift needle and orientation brake system
    5. Adjust speed by computer system and the speed can reach 1400r/min,the stitch can be set between 2mm-8mm.
    6. Automatic refueling system makes maintenance more convenient.·
    7.  Auto stop system when the upper thread is broken.
