| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXN-94-3DS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 SETS/MONTH |
| Belongs To: | Multi Needle Quilting Machine | Measurement: | 500*165*200 CM |
|---|---|---|---|
| Quilting Width: | 94 Inch | Max Running Speed: | 1500 RPM |
| Output: | 10-300 M/H | Thickness: | Maximum 8cm |
| Warranty: | One Year | After-sales: | Feild Installation,Online Video |
| High Light: | 94 Inch Automatic Mattress Quilting Machine,Multi Needle Mattress Quilting Machinery,Chain Stitch Type Mattress Quilting Machine |
||

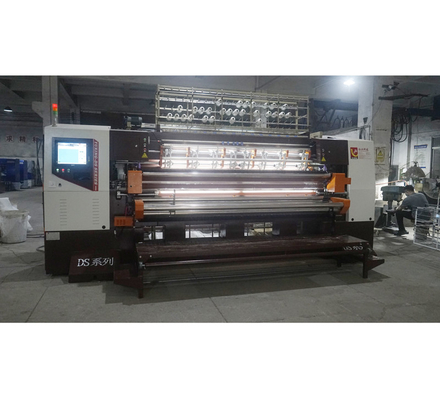

94 Inch Automatic Mattress Quilting Machine With Tack And Jump
This automatic mattress quilting machine is computer multi needle chain stitch type. It is mainly used in high quality mattress panel quilting in mattress factory. It can make hundreds patterns, work efficiently, precise quilting, less thread breakage, easy operation.
Comapre with old model YXN-94-3C
| YXN-94-3C | YXN-94-3DS |
| Weight 5000kg | Weight 800kg(reinforced machine body and foot) |
| Power 6.5kw | Power 8.5kw(higher power servo motor) |
| Speed 900rpm | Speed 1500rpm |
| x,y motor use servo motor, main axis use Frequency converter | x,y motor use servo motor, main axis use servo motor too |
| New upraded computer program( use encoder to replace speed sensor, compatible to embroidery designs) | New upraded computer program( use encoder to replace speed sensor, compatible to embroidery designs) |
| No tension motor for rolling system | It has tension motor to pull the fabric tightly |
| Some parts are used China brand | Core parts used Japan or German brand |
Advantage:
Specification:
| Product Name | Computer High speed Non-shuttle (chain stitch) Multi-needle Quilting Machine | |
| Model |
YXN-94-3DS (3"+3")
|
YXN-94-3C (3"+3")
|
| Size(L*W*H) | 5000*1650*2000mm | 5000*1600*2000mm |
| Weight | 6500kg | 5000kg |
| Quilting width | 2400mm | 2400mm |
| Needle bar space | 76.2,76.2(3"+3") | 76.2,76.2(3"+3") |
| Quilting thickness | ≤80mm | ≤80mm |
| Rolling speed | 600-1500 r/min | 600-900r/min |
| Output | 10-300m/hour | 10-200m/hour |
| Needle type | #21-#24 | #21-#24 |
| X-axis movement | 410mm | 410mm |
| Needle space | 25.4mm | 25.4mm |
| Stitch | 2-8mm | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ | 380V/50HZ,/220V/60HZ |
| Power | 8.5KW | 6.5KW |
Pattern show
