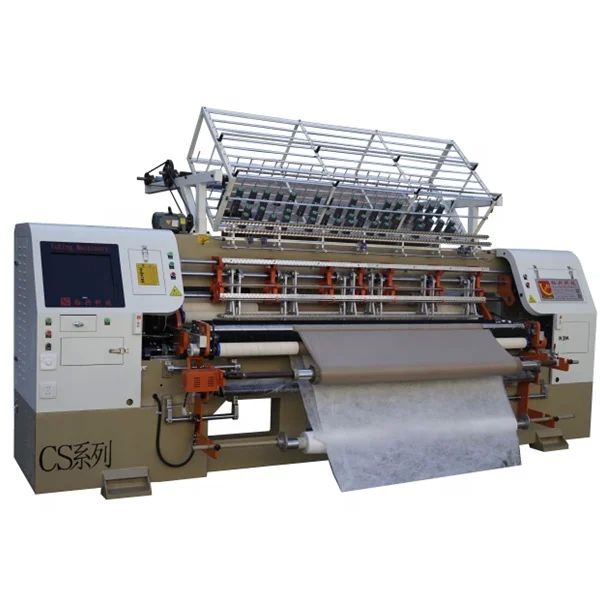

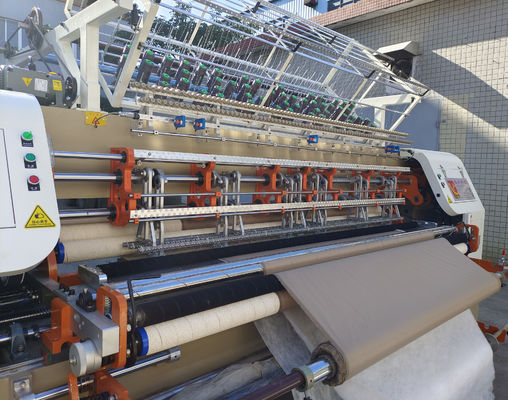

1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production

1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production

1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production
1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production
1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXS-112-3CS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: flim packing/ export packing
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 20 SET/MONTH
Contact Now
Detailed Product Description
Control Panel: Computer Number Of Needles: 3 Rows
Lubrication System: Automatic Stitch Length: 2mm-8mm
Speed: 1000rpm Name: Multi Needle Quilting Machine
Type: Quilting Machine Work Width: 280cm

Product Description:

Multi Needle Quilting Machines Suitable for: Apparel, bedding items, hats, bags, sleeping bags, nightgowns, and home decorations.



This quilting machine is equipped with an optional cutting device for edge trimming.
Capable of quilting wadding and fabric simultaneously.
User-friendly software interface with design editing functionality. Choose from a wide selection of designs available in the computer software.



Function



1. Computer-controlled speed adjustment ranging from 500r/min to 1000r/min; customize stitch length (2mm-8mm) via computer settings.

2. Convenient pattern editing directly through mouse input; compatible with embroidery file formats such as DST/DSB.

3. Pattern compensation feature to address looping patterns in thick materials effectively.

4. Auto-stop sensor for thread monitoring; automatic machine halt upon thread breakage detection.

5. Offers versatile quilting options including 180-degree and 360-degree random patterns, as well as limited multi-span for tack and jump designs.

1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production 0

Technical Parameters:

Product Name Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
Model YXS-112-3CS
Size(L*W*H) 5100*1500*1700mm
Weight 5500kg
Quilting width 2.8 M
Quilting thickness ≤5CM
Rolling speed 500-1000r/min
Output 10-210m/hour
Needle type #16,#19
X-axis movement 304mm
Needle space 25.4mm
Needle bar space 3 bar152.4(3''+3'')
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ 220V/60HZ
Power 7.0KW

Applications:

Quilt Manufacturing: The Yuxing Multi-Needle Quilting Machine is ideal for quilt manufacturing companies that require high-speed and efficient production of quilts. Its 3 rows of needles can quilt multiple layers of fabric, while its 1000rpm speed ensures fast and accurate stitching.

Furniture Manufacturing: Furniture manufacturing companies can also benefit from this multi-needle quilting machine. It can be used to stitch upholstery fabrics, such as leather, vinyl, and fabric, to create comfortable and beautiful furniture pieces.

Home Textile Production: The Yuxing Multi-Needle Quilting Machine can also be utilized in producing home textiles such as bedspreads, cushions, and tablecloths. Its stitch length range of 2mm-8mm can accommodate different fabric thickness and designs, making it perfect for home textile production.

Aside from the abovementioned occasions, the Yuxing Multi-Needle Quilting Machine can also be used in automotive and aviation manufacturing, making it a versatile and useful equipment for different industries.

1000rpm Speed Multi Needle Automatic Quilting Machine for Bedspread Production 1

Support and Services:

The Multi Needle Quilting Machine is a high-performance product that requires technical support and services to ensure optimal operation and maintenance. Our technical support team is available to assist you with any questions or concerns you may have. We offer the following services for your Multi Needle Quilting Machine:

  • Installation and setup
  • Training and education
  • Repair and maintenance
  • Upgrade and retrofitting
  • Technical troubleshooting

We are committed to providing you with the highest level of customer service and support. Our team has extensive knowledge and expertise in Multi Needle Quilting Machines and can help you with any issues you may encounter. Contact us today for more information on our technical support and services.
