320CM 260M/H High Speed Quilting Machine With Embroidery Function For Garment

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 20 Days
Payment Method: T/T, L/C
Supply Capacity: 30 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE, ISO9001
Model Number
YXS-128-3DS
Work Width:
3.2M
Max Rolling Speed:
1400 RPM
Power:
7.5kw
Weight:
7000kg
Condition:
New
Warranty:
1 Year
Machine Type:
Multi Needle
Auto Stop Function:
Yes
Highlight:

280M/H Quilting Machine

,

240CM High Speed Quilting Machine

,

2.45M High Speed Quilting Machine

Product Description

260M/H High Speed Quilting Machine With Embroidery Function 240CM Width For Quilt



The E series high speed multi needle lock stitch quilting machine is the newest series of Yuxing Brand. It has below upgrade on functions.

1. Speed max.1400rpm, stitch length adjustable 2-8mm.

2. Newly upgrade computer system, easy to operate and elimate machine faults.

3. High speed, low vibration, automatic oil lubrication.

4. Compatible to embroidery designs.

5. imported famous brand servo motor and imported core bearings.

6. Angle of fuselage for easy shuttle change



Appropriate to:

Duvets, Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.



Parameter

Model YXS-128-3DS
Dimension(L×W×H) 559*175*170 CM
Quantity of needle row 3 rows
Work width 320CM
Space between needle bars 152.4(3'+3') MM
Space between needles 25.4MM
X-stroke 304MM
Maximum thickness of sewing 5CM
Stitch length 2MM~8MM
Yeid/hour maximum 280M
Model of needle #14, 16#, 19#
Main shaft speed (RPM) 500~1400
Power  8500 W
Voltage

as required
Gross weight 6.8 tons



Function

  • Fuselage and beam and foot are reinforced, which help machine works more stably with high speed..
  • Needle bar running with needle bar frame,no need to add extra oil, avoid the materials be soiled by oil.
  • X and Y axis are driven by servo equipment. Principal axis controlled by frequency converter
  • When work with thick material, compensation function can solve the problem for out of shape pattern.
  • 360 degree and 180 degree quilting and limitless multi-span and tack and jump quilting.
  • Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
  • When hand block the infrared system , machine will auto stop, which makes your operation safer.
  • Pattern editing is easy to learn and computer can connect with usb.

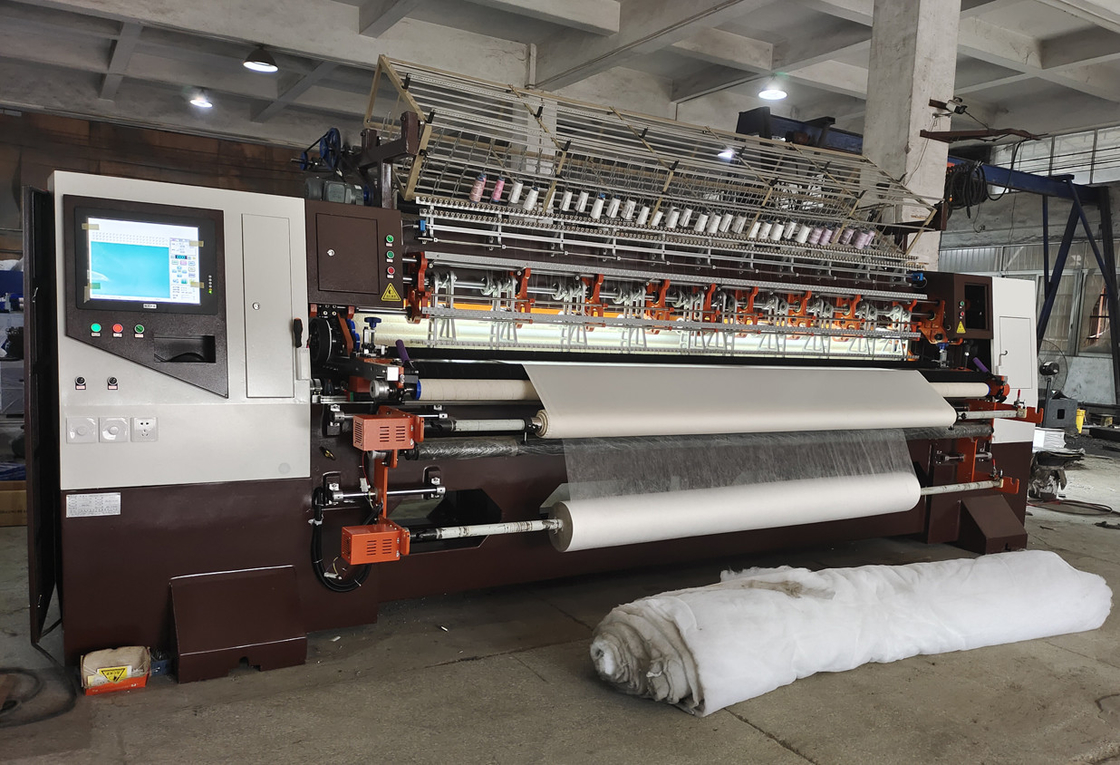

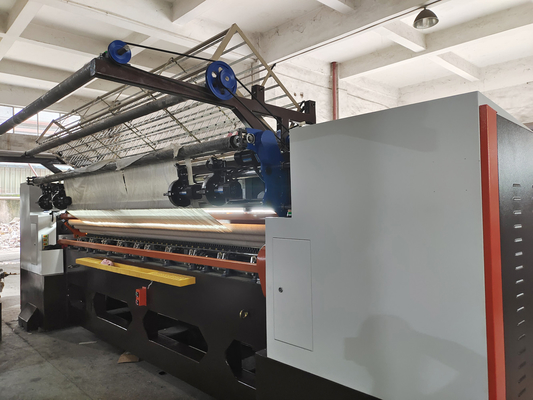

Detailed picture

320CM 260M/H High Speed Quilting Machine With Embroidery Function For Garment 0320CM 260M/H High Speed Quilting Machine With Embroidery Function For Garment 1



Pattern

320CM 260M/H High Speed Quilting Machine With Embroidery Function For Garment 2320CM 260M/H High Speed Quilting Machine With Embroidery Function For Garment 3
