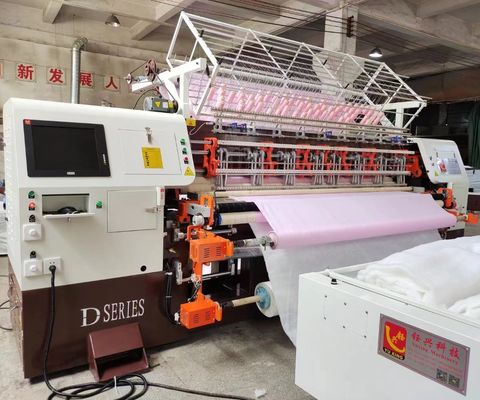

320cm Industiral Multi Needle Quilting Machine With Servo Motor

320cm Industiral Multi Needle Quilting Machine With Servo Motor

  • 320cm Industiral Multi Needle Quilting Machine With Servo Motor
  • 320cm Industiral Multi Needle Quilting Machine With Servo Motor
320cm Industiral Multi Needle Quilting Machine With Servo Motor
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE IOS9001
Model Number: YXS-128-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: packed by plastic film
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/month
Contact Now
Detailed Product Description
Product Name: Lock Stitch Quilting Machine Warranty: A Year
Work Speed: 500-1200rpm Quilting Width: 320cm
Needle Space: 1 Inch Quilting Thickness: Max. 50 MM
Stitch: 2-8 MM Voltage: 380V/50HZ,/220V/60HZ
High Light:

320cm Multi Needle Quilting Machine

,

Multi Needle Quilting Machine

,

320cm Industrial Quilting Machine

320cm Width Industiral Multi-Needle Quilting Sewing Machines With Servo Motor



Description

The D series multi needle quilting sewing machine is our newest model. It adopts imported servo motor; new upgrade computer system; machine body and beam are reinforced; maximum speed can reach 1200rpm; output can reach maximum 195m/hour. Hundreds designs can be chosen; compatitble to embroidery designs; when thread broken, machine auto stop. Automatic oil fueling device.



Specification:

Product Name D Series Computerized Lock Stitch Multi-needle Quilting Machine
Model No. YXS-128-2D/3D
Size(L*W*H) 5590*1750*1700
Gross Weight 6600KG
Quilting width 3200mm
Needle bar space 76.2(3") / 152.4(3"+3")
Thickness of quilting ≤50mm
Work speed 500-1200r/min
Speed of production 10-240m/hour
Model of Needle #16,#19
X-axis movement 254mm
Needle space 25.4mm
Stitch length 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Total Power 7.5KW



Functions:

1,Computerized speed governing , max.1200r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Imported Servo drive equipment.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Design compensation function solves the out of shape problem when sewing thicker material.
6, Machine body and beam are reinforced.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns, and compatotble with embroidery file format
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.


Warranty
Warranty: 1 year.
1) During warranty, the machine parts(except consumable parts, like needle, hook, looper, etc) can be replaced for free.
2) Computer can be sent back to repair. Under warranty, if computer broken, it can be replaced for free, but first need to send computer back for checking.
3) Consumable parts is not under warranty. We provide additional consumable parts with machine for about one year to use. Pls refer to packing list.
4) Offer life-time after service. Any time if machine has problem, customer can tell us problem with photos and small video. We will help to solve problem by online guide. If problem very serious, we can send technician to customer's place as request. Customer need to bear visa cost, round trip flight tickets, food and board, and technician labor cost USD100/day.
320cm Industiral Multi Needle Quilting Machine With Servo Motor 0

Aplication and designs

320cm Industiral Multi Needle Quilting Machine With Servo Motor 1



320cm Industiral Multi Needle Quilting Machine With Servo Motor 2
