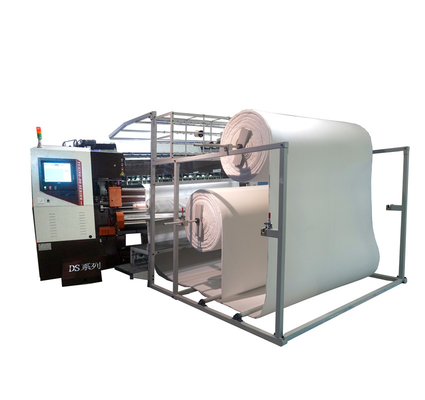

320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing

320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing

  • 320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing
  • 320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing
320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-3E
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Type: Mattress Equipment Quilting Width: 2400 MM
Rolling Speed: 600-1500 RPM Output: 10-320 M/H
Function: Auto Lubrication Tack And Jump: Yes
Stitch: 2-8 MM Product Name: Multi Needle Quilting Machine
High Light:

320m/H Computer Quilting Machine

,

1500RPM Computer Quilting Machine

,

2400mm Computer Quilting Machine

320m/H Fast Speed Chain Stitch Computer Quilting Machine 360 Degree Sewing



The model YXN-94-3E is the newest type of computer quilting machine. It is mainly used for high end bed cover, mattress top.The machine speed can reach maximum 1500rpm. Output can reach maximum 320m/hour. The machine whole body are highly reinforced. It adopt the big power panasonic servo motor, main motor also adopt servo motor. New computer system, high configuration support the machine works with ultra high speed with good performance The auto refueling system extend the bearing life span.



Specification:



Product Name Computer High speed Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3E(2"+3"/3"+3")

Size(L*W*H) 5m*1.6m*2m
Weight 7.5 tons
Quilting width 2.4m
Needle bar space 76.2+76.2(3"+3")
Quilting thickness ≤80mm
Rolling speed 600-1500 r/min
Needle type #21-#24
X-axis movement 410mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW



Function:

1. High rigidity machine body, perfect protecting equipment and steady-going control system.

2. Infrared to dectect bottom or upper thread condition. If thread broken, machine auto stop.

3. Auto lift needle and adjust the speed and stitch length by computer.

4. 360° quilting and limitless multi-span and independent quilting. (can do tack and jump patterns)

5. Infrared system and ringing notice make the operation safer.

6. Mouse drawing designs easily, connect usb to copy into new designs.

7. Computer adjust to compensate the pattern out of shape problem for thick material.

320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing 0

Optional foam frame

320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing 1

320m/H Chain Stitch Computer Quilting Machine 360 Degree Sewing 2
