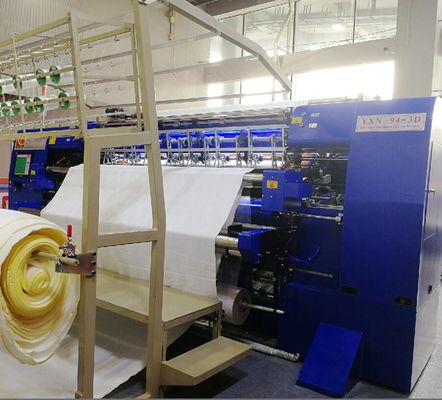

94 Inch 240m/h High Speed Mattress Quilting Machine

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 20 Days
Payment Method: T/T, L/C
Supply Capacity: 20 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE, ISO9001
Model Number
YXN-94-3D
L*w*h:
5m*1.65m*2m
Quilting Width:
94 Inch
Work Speed:
600-1200 RPM
Sewing Thickness:
8 CM
X-axis Movement:
410 MM
Stitch:
2-8 MM
Highlight:

250m/hour Mattress Quilting Machine

,

2400mm Quilting Machine

,

94 Inch Quilting Machine

Product Description

240M/H High Speed Multi Needle Mattress Sewing Machine 94 Inch Quilting Machine



The multi needle mattress sewing machine YXN-94-3D is the upgrade model based on model YXN-94-3C. It has below upgraded place.

Exterior: Machine body and beam are reinforced.

Parts: core bearings adopt imported bearings, conveyor belts to replace triangle belt, encoders replace optocoupler.

Motors: adopt Japan famous brand big power servo motor, main motor adopt the servo motor too.

Software:  new upgraded software.

Function: speed higher, compatible to embroidery designs, more stable on running.



Specification:

Model YXN-94-3D
Size(L*W*H) 5.2*1.65*2.0m
Weight 4800kg
Quilting width 2400mm(94 inch)
Needle bar spacing 3rows (3"+3" )
Quilting thickness 80mm
Rolling speed 600-1200r/min
Throughput 10-250m/hour
Needle type #21, #24
X-axis movement 410mm
Needle spacing 25.4mm
Stitch length 2-8mm
Rated voltage(AC) 380V/50HZ 220V/60HZ
Power 7.5KW



Function:

  1. Advanced process design, upgraded computer system.
  2. Needle bar and pressing block take the double rocker, avoiding the materials be soiled by lube.
  3. High rigidity machine body, perfect protecting equipment and steady-going control system.
  4. X,Y motors are driven by servo system, main axis also adopt the servo motor.
  5. Signal test from computer can test machine sensors work status, which is easy to solve malfunction.
  6. Auto lift needle when stop machine and adjust the speed by computer.
  7. Machine auto-stop, when the upper or bottom thread is detected broken. .
  8. Auto fauls tips for servo motor system and transducer can help to eliminate problems easily.
  9. 360 degrees quilting, and limitless multi-span and independent quilting.
  10. Sready running, high speed, low noise,evern very thick material, the machine can process with precise quilting designs.
  11. When start machine, there is a ringing alarm as safety reminder.​94 Inch 240m/h High Speed Mattress Quilting Machine 094 Inch 240m/h High Speed Mattress Quilting Machine 194 Inch 240m/h High Speed Mattress Quilting Machine 2

​

​
