1400 RPM Industrial Quilting Machine With Japanese Servo Motor

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 15 Days
Payment Method: T/T, L/C
Supply Capacity: 30 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE, ISO9001
Model Number
YXS-96-2/3DS
Condition:
New
Warranty:
One Year
Moving Style:
Multi Needle
Max Rolling Speed:
1400 RPM
Dimension(l*w*h):
473*175*170 CM
Weight:
6800 KG
After-sales Service Provided:
Online Video Technical Support
Quilting Width:
245 CM
Highlight:

245CM Industrial Quilting Machine

,

1400 RPM Industrial Quilting Machine

,

1400 RPM Automatic Quilting Machine

Product Description

Industrial Computerized Shuttle Quilting Machine With Japanese Servo Motor



Computer shuttle quilting machine Function:

1. Pattern editing is easy to learn, could draw the desgin in computer system.

2. Machine have the ringing notice when it begining.

3. The infrared system, make you operate more safer.

4. Principal axis uses the frequency conversion device.

5. Saddling racks and rollers are driven by servo equipment.

6. Adopt the advanced computer and mechanistic technology.

7. Can 360° random quilting and limitless multi-span and independent quilting.

8. The compensation function, an effective solution for the looping pattern with thick material.

9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.

10. Adjust speed by the computerized system, the max speed can reach 1400RPM, the stitch could be set between 2-8mm.

11. Needle bar running with needle bar frame, no need to add extra lube, avoid the materials be soiled by lube.

12. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when the thread is broken.



Model YXS-96-2/3DS
Dimension(L×W×H) 473*175*170 CM
Quantity of needle bar 3
Quilting width 245 CM
Space between needle rows 76.2(3')/152.4(3'+3') MM
Space between needles 25.4 MM
X-axis movement dispacent 254 MM
Thickness of quilting ≤50 MM
Stitch length 2~8 MM
Speed of operation(m/H) 20~280
Model of needle 16#,19#
Speed of main shaft(RPM) 500~1400
Total power required 7.5 KW
Voltage

380V/50HZ

220V/60HZ
Gross weight 6800kg



Appropriate to:



Duvets, Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.

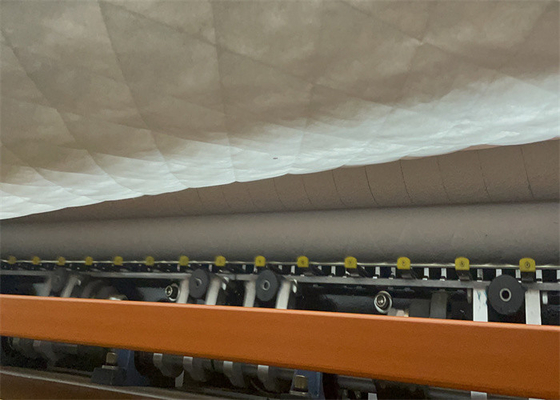

1400 RPM Industrial Quilting Machine With Japanese Servo Motor 0

Pattern

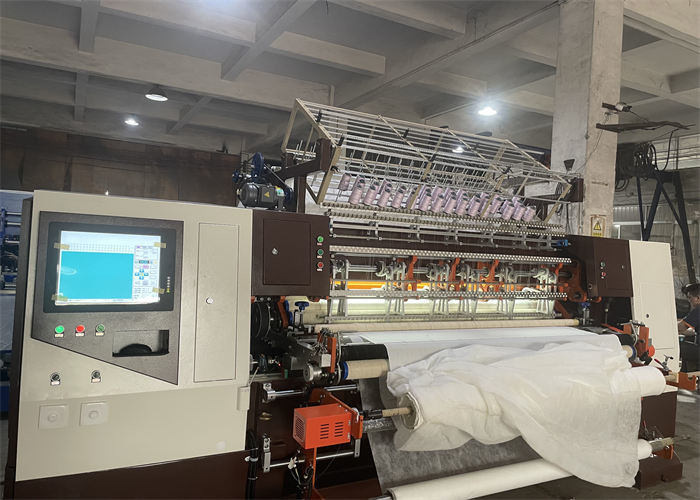

1400 RPM Industrial Quilting Machine With Japanese Servo Motor 11400 RPM Industrial Quilting Machine With Japanese Servo Motor 2
