300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing

MOQ:	1 SET
Price:	Negotiable
Standard Packaging:	Export packing
Delivery Period:	20 Days
Payment Method:	T/T, L/C
Supply Capacity:	20 SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE, ISO9001

Model Number

YXN-94-3DS

Type:

Multi Needle Chain Stitch Quilting Machine

Quilting Width:

2400 MM

Main Axis Speed:

600-1500 RPM

Capacity:

10-300 M/H

Function:

Auto Stop

Tack And Jump:

Stitch:

2-8 MM

Installation:

Engineer Available To Overseas

Highlight:

2.4m Industrial Quilting Machine

320m/h Industrial Quilting Machine

1500rpm Mattress Manufacturing Equipment

Product Description

Best 2.4M Professional Quilting Machines For Mattress Manufacturer

Application:

It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Hundreds patterns are available. Pattern editing function and insert new pattern by usb connection.

Maximum speed 1500rpm. Output maximum 300m/hour.
Highly reinforced, high configuration.
X Y axis use panasonic servo motor, main axis adopts servo motor.
New computer system,
tack & jump.
compatible to embroidery designs.
Automatic lubrication

Specification:

Product Name	DS Series Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-3DS
Measurement (LWH)	5m1.6m2m
Gross weight	7.5 tons
Quilting width	maximum 2.4m
Needle bar space	76.2(3"+3")
Quilting thickness	maximum 80mm
Running speed	maximum 1500 r/min
Needle type	#21 / #22 / #23 / #24
X-axis movement	304mm
Needle distance	1 inch
Stitch length	2mm-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Total power	7.5K Watts

Function:

Upgraded mechanical structure and computer system.
More tight thread stitches make the quilting pattern with three-dimensional effect.
Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Self-developed system, also supports quilting embroidering mainstream DST format file, easy to operation.
360°Multi-span and independent patterns
Auto thread trimming function, effectively reduce the probability thread jump,
No need to adjust the press plate's position for different thickness of quilting material.
Infrared safety protection and Auto-stop sensors detection device.
Newly upgrade computer system, easy operation and auto tips for sensors and encoders..
High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
Computer adjust to compensate the pattern out of shape problem for thick material.

One year warranty

Field installation, commissioning, and training. Client needs to bear related cost.
Free spare parts under warranty, except the wearing parts.
Online and video technical support
Field maintenance and repair service, clients need to bear related cost.
Engineers are available to service machinery overseas

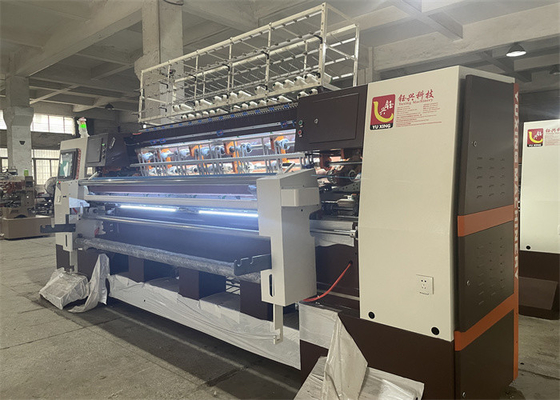

300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing 1
