3.2m Computerized Multi Needle Industrial Quilting Machine

Products

Single Needle Quilting Machine

Quilting Machine Parts

sales2@dgyx.net

+86-13537314284

Contact Now

3.2m Computerized Multi Needle Industrial Quilting Machine

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	export packing
Delivery Period:	20 days
Payment Method:	T/T, L/C
Supply Capacity:	20 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE IOS9001

Model Number

YXS-128-2/3DS

Max Sewing Thickness:

Quilting Width:

3.2 M

X-axis Movement:

304 MM

Stitch:

2MM-8MM

Rolling Speed:

500-1400 RPM

Voltage:

380V /220V

Condition:

Warranty:

1 Year

Highlight:

Computerized Industrial Quilting Machine

3.2m Industrial Quilting Machine

1400r/min Industrial Quilting Machine

Product Description

3.2 M Quilting Width Industrial Computerized Multi-Needle Quilting Machine

Quilting Machines Appropriate to: Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.

The quilting machine can add the cutting device on the machine for edge cutting.
Used wadding and fabric quilting together.
Easy software operation with design editing funciton. Hundreds of designs can be chosen in computer software.

Specification:

Product Name	Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
Model	YXS-128-2DS
Size(LWH)	559017501700mm
Weight	7500kg
Quilting width	3.2 M
Quilting thickness	≤5CM
Rolling speed	300-1400r/min
Output	10-280m/hour
Needle type	#16,#19
X-axis movement	260mm
Needle space	25.4mm
Needle bar space	2E 76.2mm (3" )/3E 152.4(3''+3'')
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ 220V/60HZ
Power	8.5KW

Function:

· Insert pattern and follow to work

· Convenient pattern editing function

· When start machine have ringing notice

· Auto lift needle and orientation brake system

· Multi-span and independent pattern quilting un-limited.

· The infrared system make your operate more safe

· Adopt the advanced computer and mechanistic technology

· Saddling rack and roller are drived by servo equipment

· Principal axis uses the frequency conversion device

· Auto stop system when the thread is broken.

· Compensation function ,an effective solution for looping pattern with thick material

· Adjust speed by computer and the speed can reach 1400r/min,the stitch can be set between 2mm-8mm

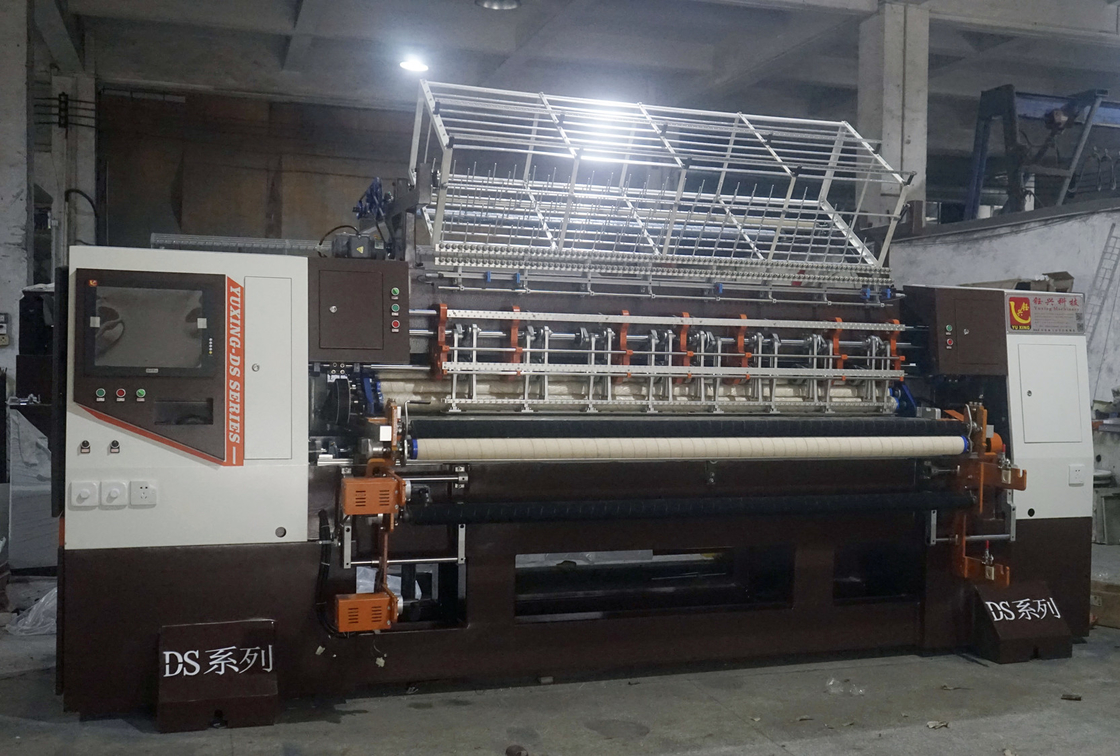

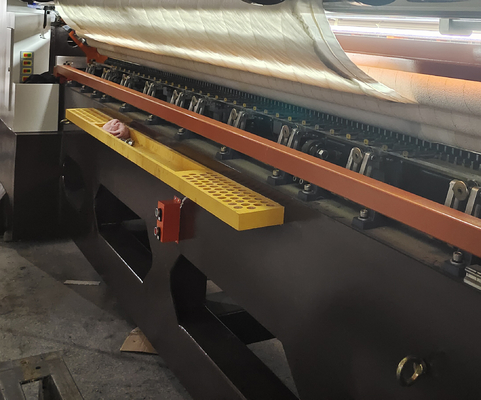

3.2m Computerized Multi Needle Industrial Quilting Machine 0

Pattern:

3.2m Computerized Multi Needle Industrial Quilting Machine 1

Tags:

Products

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	export packing
Delivery Period:	20 days
Payment Method:	T/T, L/C
Supply Capacity:	20 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE IOS9001

Model Number

YXS-128-2/3DS

Max Sewing Thickness:

5 CM

Quilting Width:

3.2 M

X-axis Movement:

304 MM

Stitch:

2MM-8MM

Rolling Speed:

500-1400 RPM

Voltage:

380V /220V

Condition:

New

Warranty:

1 Year

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

export packing

Delivery Time:

20 days

Payment Terms:

T/T, L/C

Supply Ability:

20 Sets/month

Highlight

Computerized Industrial Quilting Machine

3.2m Industrial Quilting Machine

1400r/min Industrial Quilting Machine

Product Description

3.2 M Quilting Width Industrial Computerized Multi-Needle Quilting Machine

Quilting Machines Appropriate to: Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.

Specification:

Product Name	Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
Model	YXS-128-2DS
Size(LWH)	559017501700mm
Weight	7500kg
Quilting width	3.2 M
Quilting thickness	≤5CM
Rolling speed	300-1400r/min
Output	10-280m/hour
Needle type	#16,#19
X-axis movement	260mm
Needle space	25.4mm
Needle bar space	2E 76.2mm (3" )/3E 152.4(3''+3'')
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ 220V/60HZ
Power	8.5KW

Function:

· Insert pattern and follow to work

· Convenient pattern editing function

· When start machine have ringing notice

· Auto lift needle and orientation brake system

· Multi-span and independent pattern quilting un-limited.

· The infrared system make your operate more safe

· Adopt the advanced computer and mechanistic technology

· Saddling rack and roller are drived by servo equipment

· Principal axis uses the frequency conversion device

· Auto stop system when the thread is broken.

· Compensation function ,an effective solution for looping pattern with thick material

· Adjust speed by computer and the speed can reach 1400r/min,the stitch can be set between 2mm-8mm

3.2m Computerized Multi Needle Industrial Quilting Machine 0

Pattern:

3.2m Computerized Multi Needle Industrial Quilting Machine 1
