|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||export packing|
|Delivery Time:||20 Days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||30 Sets/month|
|Warranty:||ONE Year||After-sales Service Provided:||Online Support|
|Weight:||3500 KG||Dimension(l*w*h):||3.6*1.5*1.7 M|
Computerized Shuttle Quilting Machine,
1700mm Shuttle Quilting Machine,
800r/min Shuttle Quilting Machine

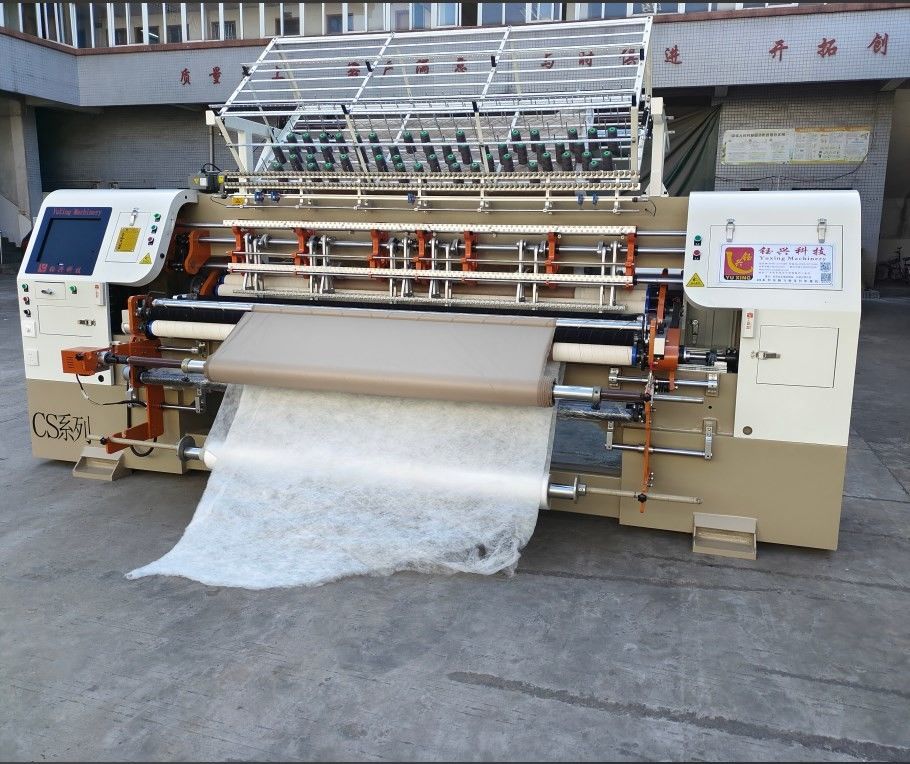

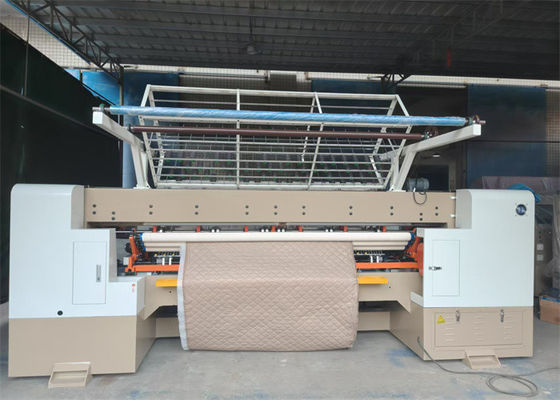

3 Needle Bars Industrial Computer Shuttle Quilting Machine With CE Certificate
Compared with the common shuttle quilting machine
A) more stronger structure, and running with saddling rock line guide, so the machine running more steady and patterns making more precise, stitch more pretty.
B) integration structure, easier for shipment and dismounting.
C) needle bar and compression bar take rocker-style structure, less noise, less maintaince cost and no need to add oil.
D) output is 30-40% higher.
E) standard assembling is including original imported shuttle, auto stop device, and fabric feed-in device with fabric reversing.
F) During the producing process of high speed quilting machine, in some range of quilting thickness, no need to adjust the machine, more simple operation
1. Adopt the advanced computer and mechanistic technology.

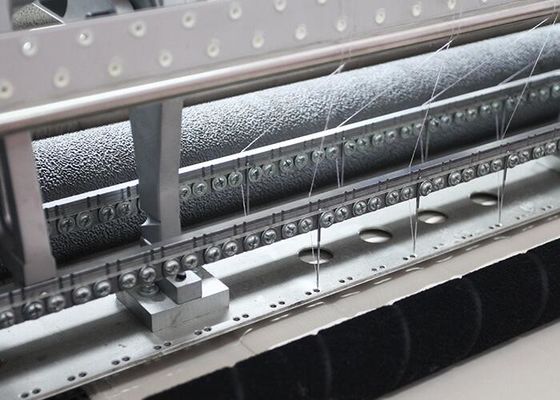

2. Needle bar running with needle bar frame, no need to add extra lube, avoid the materials be soiled by lube.
3. Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.
4. Saddle rack and roller are driven by servo equipment.
5. Principal axis uses the frequency conversion device.
6. Adjust speed by computer, the speed can reach 800r/min, the stitch can be set between 2 mm-6 mm.
7.360 random quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.
9. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
10. The infrared system, make your operate more safe.
11. Pattern editing is easy to learn. Ringing notice when start machine
|Product Name||High Speed Computer Shuttle Multi-needle Quilting Machine|
|Model||YXS-64-3C(2''+3''/3" +3" )|
|Needle bar space||2''+3''/ 3" +3"|
|Quilting thickness||≤ 50mm|
|Needle type||#16, #19|
|Rated voltage(AC)||380V/50HZ, /220V/60HZ|
