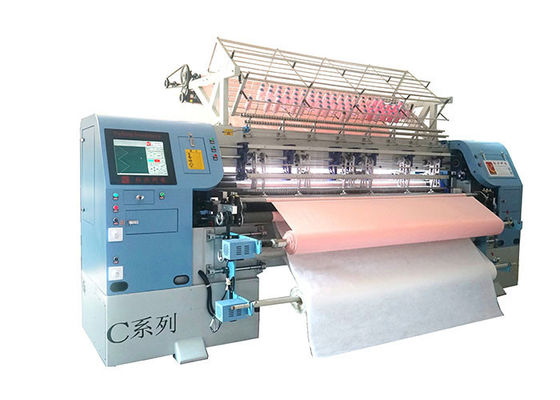

800RPM 195m/H Computerized Industrial Quilting Machine

800RPM 195m/H Computerized Industrial Quilting Machine

  • 800RPM 195m/H Computerized Industrial Quilting Machine
800RPM 195m/H Computerized Industrial Quilting Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE
Model Number: YXS-94-2/3C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Packed by plastic film
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Product Name: Computer Quilting Machine Warranty: 1 Year
Dimension(l*w*h): 360*150*170 CM Quilting Width: 2.45 M
Sewing Speed: 500-800 RPM Power: 6 KW
Weight: 4600 KG After-sales Service Provided: Online Service
High Light:

800RPM Industrial Quilting Machine

,

195m/H Industrial Quilting Machine

,

2.45m Industrial Quilting Machine

Industrial Computerized 50 Mm Material Sewing And Quilting Machine



Computerized Quilting Machine Function:

1. Adopt the advanced computer and mechanistic technology.

2. Machine's needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.

3. Needle bar frame structure is more firm and durable, the cost of maintenance is cheaper.

4. Saddling rack and roller are driven by servo equipment.

5. The Principal axis uses the frequency conversion device.

6. Adjust speed by computer, the speed can reach 800r/min,the stitch can be set between 2-6mm.

7. 360°random quilting and limitless multi-span and independent quilting.

8. Compensation function,an effective solution for looping pattern with thick material.

9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.

10. The infrared system ,make your operate more safe.

11. The pattern editing is easy to learn.

12. Machine have ringing notice when start machine.



Model YXS-94-2/3C
Dimension(L×W×H) 4600*1500*1700
Quantity of needle bar 3
Quilting width 2450
Space between needle rows 76.2(3')/ 152.4(3'+3')
Space between needles 25.4
X-axis movement dispacent 254
Thickness of quilting ≤50
Stitch length 2~6
Speed of operation(m/H) 20~195
Model of needle 16#,19#
Speed of main shaft(RPM) 500~800RPM
Total power required 6 KW
Voltage

380V/50HZ

220V/60HZ

Gross weight 4600kg



800RPM 195m/H Computerized Industrial Quilting Machine 0

800RPM 195m/H Computerized Industrial Quilting Machine 1

Appropriate to: garments, duvets, comforters, quilts, bag, sleeping-bags, nightgown, and house adornments.

800RPM 195m/H Computerized Industrial Quilting Machine 2
