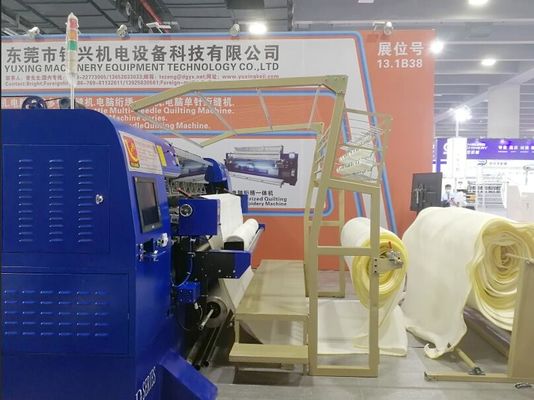

2.5M Automatic Computerized Chain Stitch Quilting Machine

2.5M Automatic Computerized Chain Stitch Quilting Machine

2.5M Automatic Computerized Chain Stitch Quilting Machine
2.5M Automatic Computerized Chain Stitch Quilting Machine

Product Details:

Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-3D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Machine Size: 5000*1650*2000 MM Quilting Width: 2450 MM
Rolling Speed: 600-1200 R/MIN Weight: 5000 KG
Warranty: 12 Months After-sales: Online Video
Output: 10-200 M/H Stitch: 2-8 MM
High Light:

Computerized Chain Stitch Quilting Machine

,

2.5M Chain Stitch Quilting Machine

,

200M/H Chain Stitch Quilting Machine

2.5 M Automatic Computerized Chain Stitch Mattress Making Quilting Machine



Quilting Machines Function:

1. Adopt the advanced process design.

2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3. High rigidity machine body,perfect protecting equipment and steady-going control system.

4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.

5. Testing the working state of all sensors and computer in real time.

6. The auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

7. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.

8. 360°quilting and limitless multi-span and independent quilting.

9. Steady running, high speed, low noise, very thick material with precise quilting.

10. Have ringing notice when start machine.



Specification:

Product Name Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3D(3"+3")

Size(L*W*H) 5000*1650*2000mm
Weight 6500kg
Quilting width 2450mm
Needle bar space 76.2,76.2(3"+3")
Quilting thickness 80mm
Rolling speed 600-1200 r/min
Output 10-250 m/hour
Needle type #21-#24
X-axis movement 410mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 7.5KW





Pattern Show
2.5M Automatic Computerized Chain Stitch Quilting Machine 02.5M Automatic Computerized Chain Stitch Quilting Machine 1

2.5M Automatic Computerized Chain Stitch Quilting Machine 2
