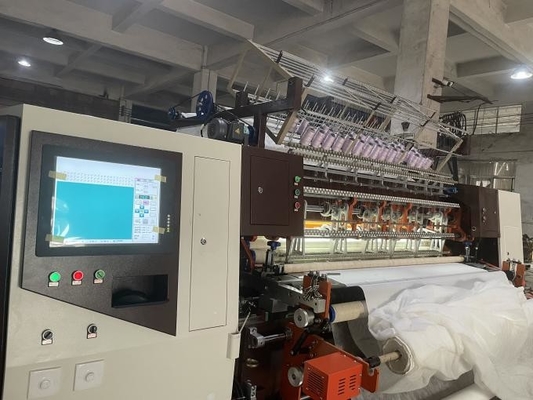

Frame Move 1400 RPM Multi Needle Lock Stitch Quilting Machine

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	export packing
Delivery Period:	20 days
Payment Method:	T/T, L/C
Supply Capacity:	20 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE IOS9001

Model Number

YXS-96-2/3DS

Max Sewing Thickness:

Quilting Width:

2.45 M

X-axis Movement:

304 MM

Stitch:

2-8MM

Rolling Speed:

Max. 1400 RPM

Voltage:

380V /220V

Condition:

Warranty:

1 Year

Highlight:

2.45m Lock Stitch Quilting Machine

1400 RPM Lock Stitch Quilting Machine

280m/hour Lock Stitch Quilting Machine

Product Description

Auto Industrial Computer System Frame Move Multi-Needle Shuttle Quilting Machine

Quilting Machines Appropriate to: Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.

The quilting machine can add the cutting device on the machine for edge cutting.
Used wadding and fabric quilting together.
Easy software operation with design editing funciton. Hundreds of designs can be chosen in computer software.

Features:

Computer adjust speed and stitch length
Automatic needle lifting when machine stop
Disconnected from stop
Pattern fine-tunning for different thickness of fabric.
Pattern segmentation modification function
Convenient and efficient pattern editing
Own a large number of quilted patterns for you to choose from
Biaxial use of high-power Japanese Panasonic servo drive system

Specification:

Product Name	Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
Model	YXS-96-2DS/3DS
Size(LWH)	573017501700mm
Weight	6800kg
Quilting width	2.45 M
Quilting thickness	≤5CM
Rolling speed	500-1400r/min
Output	10-280m/hour
Needle type	#16,#19, #14
X-axis movement	254mm
Needle space	25.4mm
Needle bar space	2DS 76.2mm (3" )/3DS 152.4(3''+3'')
Stitch	2mm-8mm
Rated voltage(AC)	380V/50HZ 220V/60HZ
Power	7.5KW

Function:

· Inset pattern and follow to work

· Convenient pattern editing function

· When start machine have ringing notice

· Auto lift needle and orientation brake system

· Multi-span and independent pattern quilting un-limited.

· The infrared system make your operate more safe

· Adopt the advanced computer and mechanistic technology

· Saddling rack and roller are drived by servo equipment

· Principal axis uses the frequency conversion device

· Auto stop system when the thread is broken.

· Compensation function ,an effective solution for looping pattern with thick material

· Adjust speed by computer and the speed can reach 1400r/min,the stitch can be set between 2mm-8mm

Edge cutting

Frame Move 1400 RPM Multi Needle Lock Stitch Quilting Machine 0

Pattern:

Frame Move 1400 RPM Multi Needle Lock Stitch Quilting Machine 1

Tags:

Products

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	export packing
Delivery Period:	20 days
Payment Method:	T/T, L/C
Supply Capacity:	20 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE IOS9001

Model Number

YXS-96-2/3DS

Max Sewing Thickness:

5 CM

Quilting Width:

2.45 M

X-axis Movement:

304 MM

Stitch:

2-8MM

Rolling Speed:

Max. 1400 RPM

Voltage:

380V /220V

Condition:

New

Warranty:

1 Year

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

export packing

Delivery Time:

20 days

Payment Terms:

T/T, L/C

Supply Ability:

20 Sets/month

Highlight

2.45m Lock Stitch Quilting Machine

1400 RPM Lock Stitch Quilting Machine

280m/hour Lock Stitch Quilting Machine

Product Description

Auto Industrial Computer System Frame Move Multi-Needle Shuttle Quilting Machine

Quilting Machines Appropriate to: Garment, bedding products, hat, bag, sleeping-bag, nightgown, and house adornments.

Features:

Computer adjust speed and stitch length
Automatic needle lifting when machine stop
Disconnected from stop
Pattern fine-tunning for different thickness of fabric.
Pattern segmentation modification function
Convenient and efficient pattern editing
Own a large number of quilted patterns for you to choose from
Biaxial use of high-power Japanese Panasonic servo drive system

Specification:

Product Name	Computer Shuttle(Lock Stitch) Multi-needle Quilting Machine
Model	YXS-96-2DS/3DS
Size(LWH)	573017501700mm
Weight	6800kg
Quilting width	2.45 M
Quilting thickness	≤5CM
Rolling speed	500-1400r/min
Output	10-280m/hour
Needle type	#16,#19, #14
X-axis movement	254mm
Needle space	25.4mm
Needle bar space	2DS 76.2mm (3" )/3DS 152.4(3''+3'')
Stitch	2mm-8mm
Rated voltage(AC)	380V/50HZ 220V/60HZ
Power	7.5KW

Function:

· Inset pattern and follow to work

· Convenient pattern editing function

· When start machine have ringing notice

· Auto lift needle and orientation brake system

· Multi-span and independent pattern quilting un-limited.

· The infrared system make your operate more safe

· Adopt the advanced computer and mechanistic technology

· Saddling rack and roller are drived by servo equipment

· Principal axis uses the frequency conversion device

· Auto stop system when the thread is broken.

· Compensation function ,an effective solution for looping pattern with thick material

· Adjust speed by computer and the speed can reach 1400r/min,the stitch can be set between 2mm-8mm

Edge cutting

Frame Move 1400 RPM Multi Needle Lock Stitch Quilting Machine 0

Pattern:

Frame Move 1400 RPM Multi Needle Lock Stitch Quilting Machine 1
