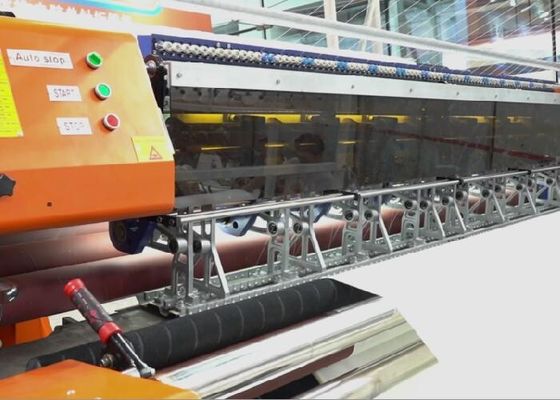

300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing

300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing

300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing
300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing
300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-3DS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Type: Multi Needle Chain Stitch Quilting Machine Quilting Width: 2400 MM
Main Axis Speed: 600-1500 RPM Capacity: 10-300 M/H
Function: Auto Stop Tack And Jump: Yes
Stitch: 2-8 MM Installation: Engineer Available To Overseas
High Light:

2.4m Industrial Quilting Machine

,

320m/h Industrial Quilting Machine

,

1500rpm Mattress Manufacturing Equipment

Best 2.4M Professional Quilting Machines For Mattress Manufacturer



Application:

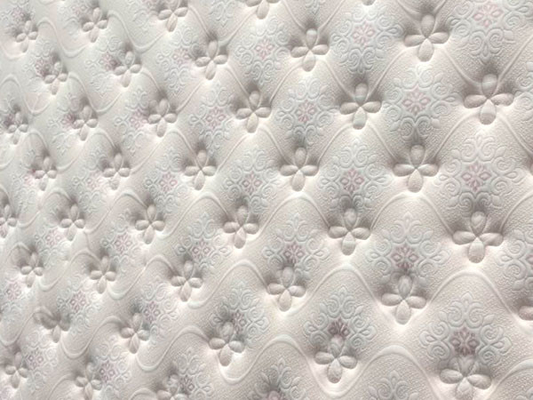

It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Hundreds patterns are available. Pattern editing function and insert new pattern by usb connection.

  • Maximum speed 1500rpm. Output maximum 300m/hour.
  • Highly reinforced, high configuration.
  • X Y axis use panasonic servo motor, main axis adopts servo motor.
  • New computer system,
  • tack & jump.
  • compatible to embroidery designs.
  • Automatic lubrication

Specification:

Product Name DS Series Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model

YXN-94-3DS

Measurement (L*W*H) 5m*1.6m*2m
Gross weight 7.5 tons
Quilting width maximum 2.4m
Needle bar space 76.2(3"+3")
Quilting thickness maximum 80mm
Running speed maximum 1500 r/min
Needle type #21 / #22 / #23 / #24
X-axis movement 304mm
Needle distance 1 inch
Stitch length 2mm-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Total power 7.5K Watts



Function:

  1. Upgraded mechanical structure and computer system.
  2. More tight thread stitches make the quilting pattern with three-dimensional effect.
  3. Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
  4. Self-developed system, also supports quilting embroidering mainstream DST format file, easy to operation.
  5. 360°Multi-span and independent patterns

  6. Auto thread trimming function, effectively reduce the probability thread jump,

  7. No need to adjust the press plate's position for different thickness of quilting material.
  8. Infrared safety protection and Auto-stop sensors detection device.

  9. Newly upgrade computer system, easy operation and auto tips for sensors and encoders..
  10. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.

  11. Computer adjust to compensate the pattern out of shape problem for thick material.

One year warranty

  1. Field installation, commissioning, and training. Client needs to bear related cost.
  2. Free spare parts under warranty, except the wearing parts.
  3. Online and video technical support
  4. Field maintenance and repair service, clients need to bear related cost.
  5. Engineers are available to service machinery overseas300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing 0



300m/h 240cm Work Width Industrial Quilting Machine for Mattress Manufacturing 1
