1200RPM Industrial Multi Needle Mattress Quilting Machine

1200RPM Industrial Multi Needle Mattress Quilting Machine

  • 1200RPM Industrial Multi Needle Mattress Quilting Machine
  • 1200RPM Industrial Multi Needle Mattress Quilting Machine
  • 1200RPM Industrial Multi Needle Mattress Quilting Machine
  • 1200RPM Industrial Multi Needle Mattress Quilting Machine
1200RPM Industrial Multi Needle Mattress Quilting Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE ISO9001
Model Number: YXN-94-3D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
Measurement: 5M*1.65M*2M Output: Maximum 250m/hour
Needle Bar: 3 Bars G.W: 6500 KG
Max.thickness: 8CM Patterns: Hundreds Can Choose
Auto Stop: Yes, When Thread Broken Tack & Jump: Yes
High Light:

Mattress Quilting Machine 1200RPM

,

Multiple Needle Mattress Quilting Machine

,

ISO9001 Computerized Multi Needle Quilting Machine

1200rpm industrial multi needle mattress quilting machine



Strength of new model multi needle quilting machine for mattress

Difference from old model YXN-94-3C



YXN-94-3C YXN-94-3D
Weight 5000kg Weight 6500kg(reinforced machine body and foot)
Power 6.5kw Power 7.5kw(higher power servo motor)
Speed 900rpm Speed 1200rpm
x,y motor use servo motor, main axis use Frequency converter x,y motor use servo motor, main axis use servo motor too
New upraded computer program( use encoder to replace speed sensor, compatible to embroidery designs) New upraded computer program( use encoder to replace speed sensor, compatible to embroidery designs)
No tension motor for rolling system It has tension motor to pull the fabric tightly
Some parts are used China brand Core parts used Japan or German brand



Specification:

Product Name Computer High speed Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model YXN-94-3D(3"+3")
L*W*H 500cm*165cm*200cm
Gross Weight 6.5 tons
Width of quilting  245cm
Distance between needle row 6 inch
Quilting thickness Max. 8cm
Rolling speed 600r/min-1200 r/min
Recommend needle model #2, #22, #23, -#24
X-axis movement 41cm
Distance between needles  1 inch
Stitch length adjustable 2mm-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Total power 7500w


Function:
1. Adopt the advanced process design. Machine body reinforced.
2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and steady-going control system.
4. X,Y motors are driven by imported servo system, and principal axis takes servo system too.
5. Test the working state of all sensors and computer in real time.
6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
7. Auto faults tips for servo motor system and transducer ,which is convenient to eliminate problems.
8. 360° quilting and limitless multi-span quilting. (can do tack and jump patterns)
9. Steady running ,high speed, low noise, very thick material with precise quilting.
10. Ringing notice when start machine.

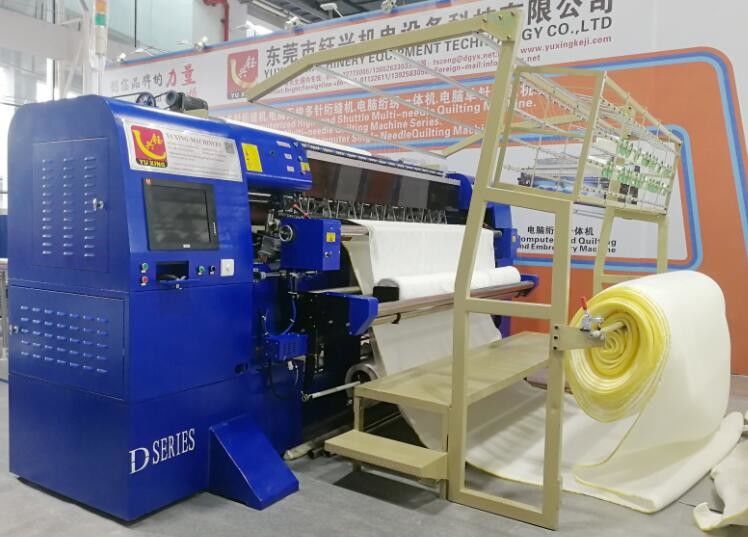

1200RPM Industrial Multi Needle Mattress Quilting Machine 0

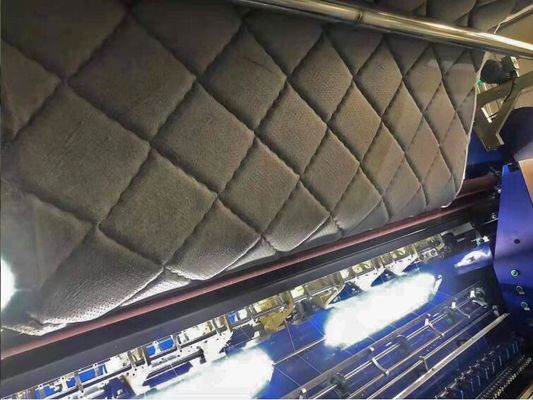

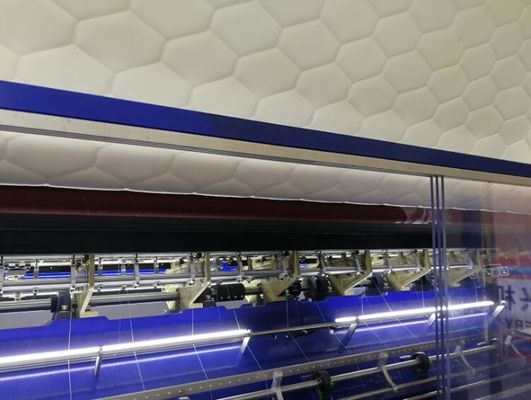

Pattern show

1200RPM Industrial Multi Needle Mattress Quilting Machine 1
