| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-96-3CS#10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | export packing |
| Delivery Time: | 15 workdays |
| Supply Ability: | 20 set/ month |
| Speed: | 1000rpm/min | Needle Bar Frame Structure: | Aluminum Alloy |
|---|---|---|---|
| Saddle Frame And Roller: | Servo Drive Equipment | Imported Screw Rod: | High Precision And High Rigidity |
| Arbitrary Quilting: | 360° | Function: | Automatic Stop |
| High Light: | 1000rpm/min Multi Needle Quilting Machine,Lock Stitch Multi Needle Quilting Machine,Bedding Industrial Quilting Machine |
||
|

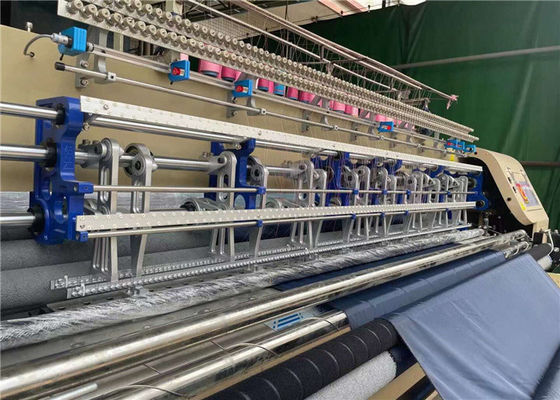

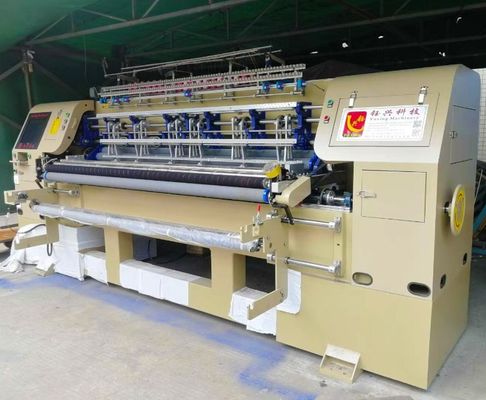

1. The speed of needle is controlled by the computer and can reach 1000rpm/min.
2. Needle row movement adopts aluminum alloy needle bar frame structure which doesn’t need to refuel, and will be strong and durable. 3. The saddle frame and roller adopt servo drive equipment, and the spindle adopts frequency conversion control; 4. Adopt high precision and high rigidity imported screw rod; 5. 360°arbitrary quilting and unlimited independent pattern step quilting; 6. Automatic stop function when the upper thread is broken; 7. Infrared induction makes the operation safer; |
Technical Parameter:
| Parameter(Unit mm) | Model: YXS-96-3CS#10 |
| Dimension (L*W*H) | 4600*1500*1700 MM |
| Quilting width | 2450mm |
| Space between needle rows | 76.2,76.2, 152.4(6") |
| Space between needle | 25.4 |
| X-ais movement displacement | 254mm |
| Thickness of quilting | ≤50mm for all patterns |
| Stitch Length | 2-8mm |
| Speed of operation | 60-210m/hour |
| Model of Needle | 24/180 23/160 22/140 21/130 |
| Speed of operation | 200-1000RPM |
| Total Power required | 6.8KW |
| Voltage | 380/ 50HZ,220V/60HZ or other customer requirement |
| Gross Weight | 4850KG |
