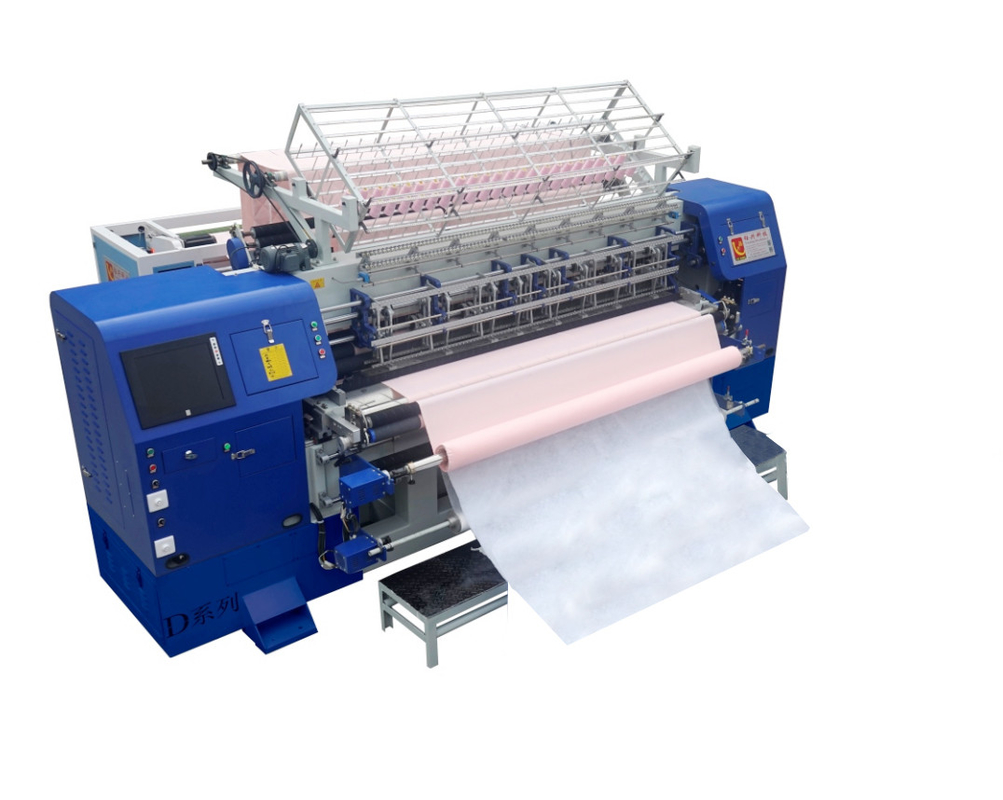

Frame Moved Multi Needle Quilting Equipment For Car Mat 240M/H

Frame Moved Multi Needle Quilting Equipment For Car Mat 240M/H

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Packed by plastic film
Delivery Period: 15 Days
Payment Method: T/T, L/C
Supply Capacity: 30 SETS/MONTH
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE
Model Number
YXS-64-2D
Belongs To:
Leather Quilting Machine
Gross Weight:
4.8 Tons
Work Width:
Maximum 170cm
Max Sewing Speed:
1200 Roll/MIN
Needle:
2 Rows
Certification:
CE / ISO
Highlight:

240M/H Multi Needle Quilting Equipment

,

Frame Moved Multi Needle Quilting Equipment

,

Frame Moved Digital Quilting Machine

Product Description

Frame Moved Computerized Multi Needle Leather Quilting Machine For Car Mat 240M/H Yield



Strength

  • Both the body and feet are reinforced. The speed can reach up to 1200rpm.
    New generation computer system, compatible with embroidery file format (DST/DSB)
    The pattern compensation function avoids the problem of skipped stitches on thick materials.
    The automatic stop sensor detects the condition of the line, and when the line is broken, the machine will stop automatically.
    180-degree and 360-degree random quilting patterns, and limited multi-spans for stationary and jumping designs.
    Oil lubrication system prolongs machine life.

Parameter



Model YXS-64-2D
L×W×H Measurement 3935*1750*1700
Quantity of needle bar 2
Quilting width maximum 1700mm
Distance between needle rows 76.2mm (3')
Distance between needles 25.4mm
X-axis stroke 204
Maximum thickness of padding 5cm
Stitch length 2mm~8mm
Yield per hour 10~240
Type of needle 14#, 16#,19#
Max sewing speed roll / minute 500~1200
Total power  4k Watts
Voltage

380V/50HZ220V/60HZ

Gross weight 4.8 tons



Characteristic

1. High rigidity machine body, precise liner guide rail, and double swing structure needle rack

2. Needle bar running with needle bar frame,no need to add extra lube, avoiding the materials be soiled by lube.

3. Firm and durable needle bar frame structure , so that it can reduce the cost of maintenance.

4. X and Y axis are driven by servo equipment. Principal axis adopts the frequency conversion device

5. Computer program monitors the working states of all sensor in work time.

6. Adjust speed by computer 500r-1200r/min, set different stitch length(2mm-8mm) from computer .

7. Multi-span independent pattern (360°and 180° patterns are available).

8. When work with thick material, compensation function can solve the problem for looping pattern.

9. Advanced upper and bottom thread breakage detection function , auto needle lifting

10. When hand block the infrared system , machine will auto stop, which makes your operation safer.

11. Easy to draw new desig by mouse and it can connect usb disk to copy new design.

12. New generation quilting software , easy operation, more precise quilting.

Frame Moved Multi Needle Quilting Equipment For Car Mat 240M/H 0

Patterns with leather for car mat / car interior / car seat cushions

Frame Moved Multi Needle Quilting Equipment For Car Mat 240M/H 1

Frame Moved Multi Needle Quilting Equipment For Car Mat 240M/H 2
