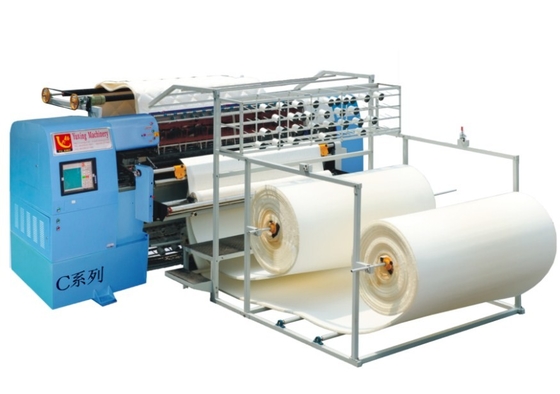

2.4m Industrial Chain Stitch Quilting Machine For Mattress

2.4m Industrial Chain Stitch Quilting Machine For Mattress

  • 2.4m Industrial Chain Stitch Quilting Machine For Mattress
  • 2.4m Industrial Chain Stitch Quilting Machine For Mattress
2.4m Industrial Chain Stitch Quilting Machine For Mattress
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-3C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Machine Size: 5m*1.6m*2m Rolling Speed: Max. 900 RPM
Quilting Thickness: 8cm Foam/padding Application: Mattress/quilt/comforter/bed Sheet/carpet/cushion
Needle No.: 3 Needle Bar Warranty: 1 Year For Main Part
High Light:

2.4m Quilting Machine

,

900 RPM Quilting Machine

,

900RPM Mattress Quilting Machine

2.4M Industrial Chain Stitch Quilting Machine Computerized Sewing Machine For Mattress



YXN-94-3C is the classic model of chain stitch quilting machine. It has all the basic function for quilting mattress, price is  cost-effective.

Spee fast, low vibration, varies of patterns to choose, auto stop function and thread trimming function, tack and jump, maximum 8cm sewing thickness.



Advantages:

  • High rigidy machine body, precise liner guide rail, and double swing structure needle racker
  • Main principal axis is driven by requency converter, and X,Y axis driving by Japan famaous brand servo motor
  • 360 degree sewing, multi span and tack & jump
  • Auto stop function.
  • Machine automatic stop when pre-set output is finished, which is more convenient for operation.
  • Japan or German brand core bearings and precise casting parts prolongs the machine lifetime.
  • Test all sensors work status by computer, which is convenient for machine malfunction.
  • Newly upgrade computer system, adjust speed without stop machine, compatible to embroidery patterns.
  • Convenient for program upgrade, friendly customer interface, easy operation.
  • Stably runing, even very thick material, it can also performed well with precise designs.



Specification:



Product Name Computer Non-shuttle Multi-needle Mattress Quilting Machine
Model

YXN-94-3C (3"+3")

Dimension (L*W*H) 4800MM*1600MM*2000MM
Gross Weight 4500kg
Work width 2485MM
Needle bar distance 50.8,76.2,(2"+3");76.2,76.2(3"+3")
Sewing thickness 80MM
Main shaft speed 600-900 (roll/minute)
Output 10-200 (meter/hour)
Suitable Needle Size #21, #22, #23, #24
X-axis movement 10 inch
Needle space 25.4MM
Stitch 2MM-8MM adjustable
Rated voltage(AC) 3 phase 380V/50HZ,/220V/60HZ
Total Power 7KW

2.4m Industrial Chain Stitch Quilting Machine For Mattress 0

Design show



2.4m Industrial Chain Stitch Quilting Machine For Mattress 1
