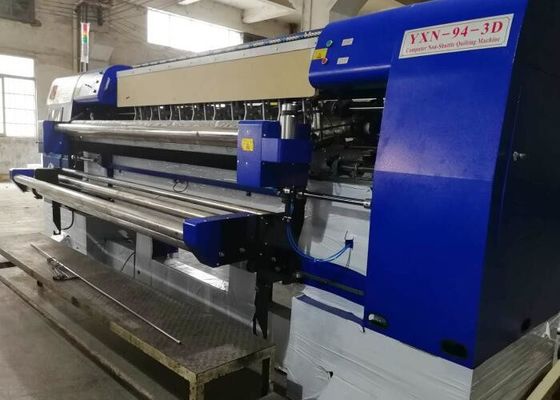

Auto stop 1200r/min Foam Mattress Making Machine For Quilting

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Export packing
Delivery Period: 20 Days
Payment Method: T/T, L/C
Supply Capacity: 20 SETS/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE ISO9001
Model Number
YXN-94-3D
Belong To:
Multi Needle Quilting Machine
Quilting Width:
2450 MM
Work Speed:
600rpm-1200rpm
Quilting Thickness:
8CM
Suitable Needle:
#21-#24
Tack And Jump:
Yes
Auto Trimming:
Yes
Auto Stop:
Yes (when Thread Broken)
Highlight:

2485mm Foam Mattress Making Machine

,

1200r/min Quilting Machine

,

7.5KW Quilting Machine

Product Description

1200rpm Sewing Speed Foam Mattress Machinery Mattress Production Machine For Quilting



This foam mattress machinery is a kind of multi needle chain stitch quilting machine. It is to sewing foam with knited fabric and non-woven fabric together for the top of high quality mattress or mattress border. The sewing thickness maximum can reach 8cm, three layers of foam is workable. The work width is maximum 2.4m. Work speed maximum 1200rpm.180 degree and 360 degree tack and jump function. Newly upgrade computer program; main motor and X,Y motor are driven by servo motors. Machine beam and fuselage are reinforced; When thread broken, machjine automatically stop; Hundreds pattern can be chosen.

Suitable thread:

Upper thread: 210D/3; 150D/3 polyester thread

Bottom thread: 40S/2; 50S/2 spun polyester sewing thread



Application:

high-quality mattress top, mattress pad, mattress border, quilt, quilt covers, and household ornaments.



Specification:

Model YXN-94-3D (3"+3")
Dimension(L*W*H) 5M*1.6M*2M
Gross weight 6500kg
Quilting width 2485mm
Space between needle row 76.2+76.2(3"+3")
Max. sewing thickness 8cm
Main shaft maximum speed 1200 r/min
Needle type #21 / #22 / #23 / #24
X-axis stroke 410mm
Space between needles 25.4mm
Stitch size 2-8mm
Rated voltage(AC) 3 phase 380V/50HZ,/220V/60HZ
Total power required 7.5KW


Function of shuttless quilting machine:.

1. High rigidity machine body, perfect protecting equipment and steady-going control system.
2. Tilted body design. Easy to operate and maintain.
3. Thread break dectation, auto-stop system when the bottom or upper thread broke by infrared.
4. Using air cylinder for thread trimming.
5. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
6. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.
7. Emergency safety devices.
8. Improved quilting software control system allows more precise and stable quilting operations.
9. Computer mouse easily draw pattern and usb connection for adding pattern.
10. 360°quilting and limitless multi-span and independent quilting.(Can do tack and jump patterns)
11. Pattern compensation.



Auto stop 1200r/min Foam Mattress Making Machine For Quilting 0Auto stop 1200r/min Foam Mattress Making Machine For Quilting 1

Pattern show

Auto stop 1200r/min Foam Mattress Making Machine For Quilting 2
