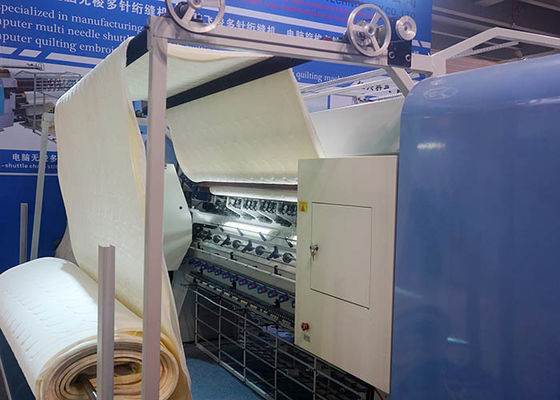

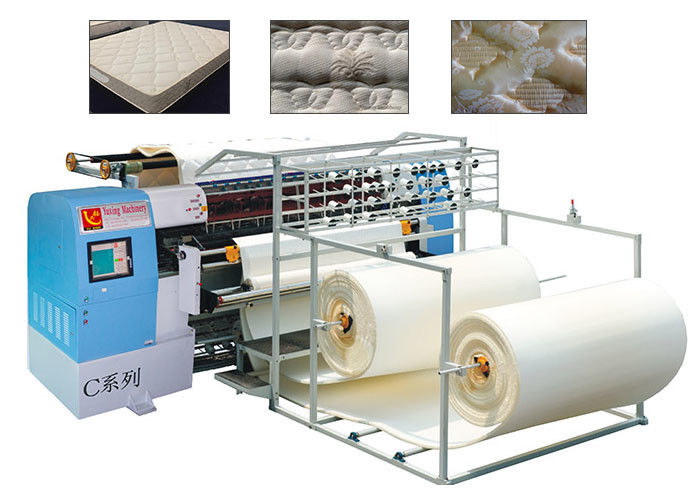

Multi Needle Non Shuttle Quilting Machine With Tack And Jump

Multi Needle Non Shuttle Quilting Machine With Tack And Jump

    • Multi Needle Non Shuttle Quilting Machine With Tack And Jump
    • Multi Needle Non Shuttle Quilting Machine With Tack And Jump
  • Multi Needle Non Shuttle Quilting Machine With Tack And Jump

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE
    Model Number: YXN-94-3C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 15 Days
    Payment Terms: T/T, L/C
    Supply Ability: 20 SETS/MONTH
    Contact Now
    Detailed Product Description
    Product Name: Chain Stitch Quilting Machine Measurement: 5m*1.6m*2m
    Quilting Width: 2.4m Rotation Speed: 600rpm-900rpm
    Production Speed: Max. 200 M/h Quilting Thickness: Maximum 8cm
    High Light:

    900r/min Quilting Machine

    ,

    200m/h Quilting Machine

    ,

    2.4m Non Shuttle Quilting Machine

    Industrial Multi Needle Non Shuttle Quilting Machine With Tack And Jump



    The non shuttle quilting machine has below features;

    1. High rigidity machine body, perfect protecting equipment and steady-going control system.
    2. Tilted body design. Easy to operate and maintaine.
    3. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
    4. Using air cylinder for thread cutting tail length.
    5. Operated using high quality sealed bearings that do not need lubrication.
    6. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.
    7. Emergency safety devices.
    8. Improved quilting software control system allows more precise and stable quilting operations.
    9. Easy to creat your own designs by computer with mouse.
    10. 360°quilting and limitless multi-span and independent quilting.(Can do tack and jump patterns)
    11. Error problem detection system.
    12. Pattern compensation.



    Specification

    Product Name Computer Multi-needle Non Shuttle Quilting Machine
    Model

    YXN-94-3C(3"+3'')

    Size (length*width*height) 5m*1.6m*2m
    Weight 5000kg
    Work width 2.4m
    Needle bar space 76.2,76.2(3"+3'')
    Thickness of quilting  maximum 8cm
    Rotation speed 600-900r/min
    Production speed 10-200m/hour
    Needle size 140/22, 160/23, 180/24
    Max. horizontal movement 41cm
    Needle space 25.4mm
    Stitch size 2mm-8mm
    Power supply 380V/50HZ,/220V/60HZ
    Power 7.5KW



    Loading and packing

    Multi Needle Non Shuttle Quilting Machine With Tack And Jump 0



    Multi Needle Non Shuttle Quilting Machine With Tack And Jump 1
