    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE, ISO9001
    Model Number: YXN-94-3E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 20 Days
    Payment Terms: T/T, L/C
    Supply Ability: 20 SETS/MONTH
    Contact Now
    Detailed Product Description
    Machine Size: 5000*1650*2000 MM Quilting Width: 2400 MM
    X-axis Movement: 410 MM Stitch: 2-8 MM
    Rolling Speed: 600-1500 RPM Output: 10-320 M/H
    Function: Tack & Jump / Auto Stop / Thread Trimming / Auto Refueling / Embroidery Function
    High Light:

    1500RPM Quilting Mattress Machine

    ,

    2400mm Quilting Mattress Machine

    ,

    320m/h Quilting Mattress Machine

    Industrial 1500RPM Computerized Chain Stitch Multi-needle Quilting Mattress Machine



    Quilting mattress machine strength:

    1. Maximum rolling speed: 1500rpm, stitch adjustable: 2mm-8mm

    2. Newly upgrade computer program.

    3. Except X, Y axis use big power imported servo motor, main axis adopt servo motor too.

    4. Automatic oil lubrication system.

    5. Compatible to embroidery designs.

    6. Fuselage and beam reinforced, high configuration core parts.



    Specification:

    Product Name Computer High speed Non-shuttle (chain stitch) Multi-needle Quilting Machine
    Model

    YXN-94-3E(2"+3"/3"+3")

    Measurement(L*W*H) 5000*1600*2000mm

    Weight

    7500kg
    Quilting width 2485mm
    Needle bar space 50.8,76.2,(2"+3"); 76.2,76.2(3"+3")
    Quilting thickness ≤80mm
    Rolling speed 600-1500 r/min
    Needle type #21-#24
    X-axis movement 410mm
    Needle space 25.4mm
    Stitch 2-8mm
    Rated voltage(AC) 380V/50HZ,/220V/60HZ
    Power 7.5KW



    Function:

    1. Adopt the advanced process design.

    2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

    3. High rigidity machine body, perfect protecting equipment and steady-going control system.

    4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.

    5. Test the working state of all sensors and computer in real time.

    6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

    7. Auto faults tips for servo motor system and transducer ,which is convenient to eliminate problems.

    8. 360° quilting and limitless multi-span and independent quilting. (can do tack and jump patterns)

    9. Steady running ,high speed, low noise, very thick material with precise quilting.

    10. Ringing notice when start machine.

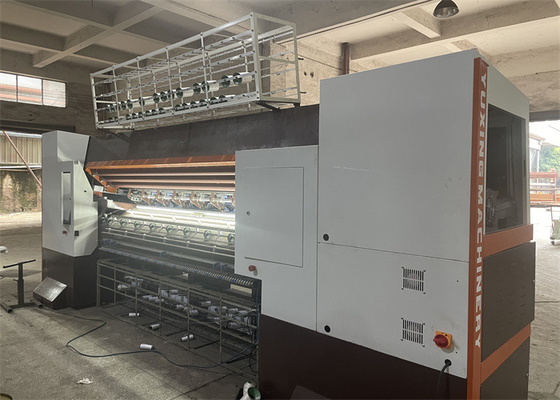

    Industrial Computerized Multi Needle Quilting Mattress Machine 0

    Patterns and application

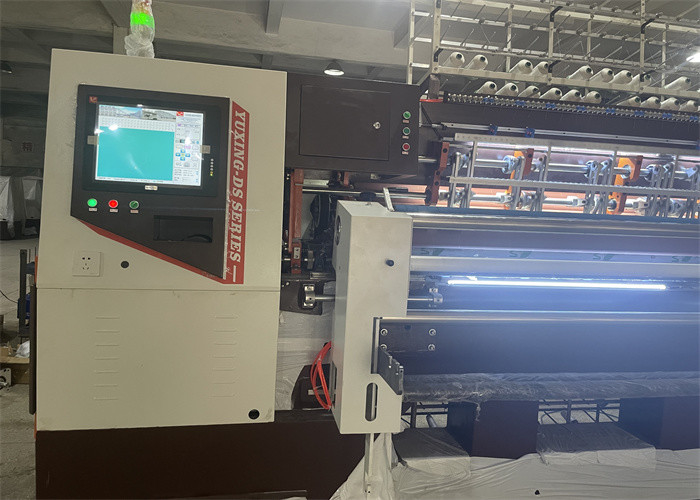

    Industrial Computerized Multi Needle Quilting Mattress Machine 1

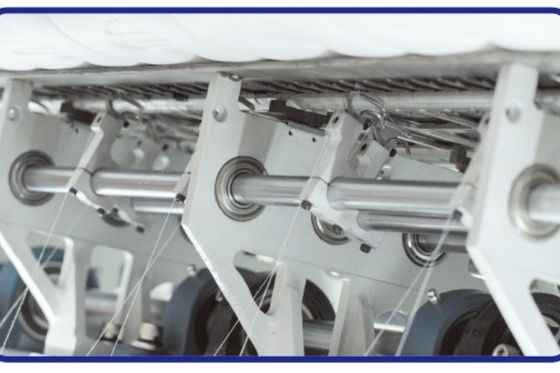

    Industrial Computerized Multi Needle Quilting Mattress Machine 2
