| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE, ISO9001 |
| Model Number: | YXN-94-3DS |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 SETS/MONTH |
| Measurement: | 5m*1.65m*2M | Quilting Width: | 2.4 M |
|---|---|---|---|
| X-axis Movement: | 410 MM | Rolling Speed: | 600-1500 RPM |
| Yield: | 10-300 M/H | Stitch: | 2-8 MM |
| Warranty: | 1 Year | ||
| High Light: | 1500RPM Mattress Manufacturing Machines,320m/h Mattress Manufacturing Machines,2.4m Mattress Quilting Machine |
||

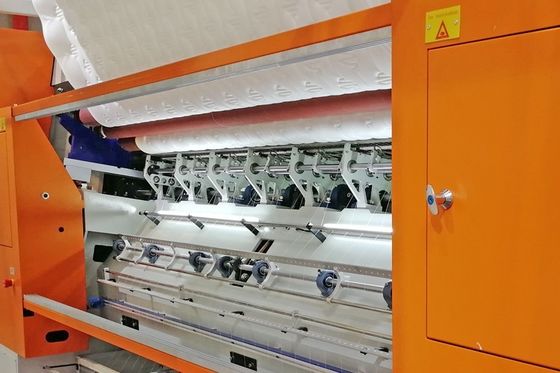

94 Inch Industrial Chain Stitch Mattress Manufacturing Machine For Thick Mattress
Mattress manufacturing machine strength:
1. Fuselage and beam reinforced, high configuration core parts. Adopt the advanced process design.
2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and steady-going control system.
4. Except X, Y axis use big power imported servo motor, main axis adopt servo motor too.
5. Newly upgrade computer program. Maximum rolling speed: 1500rpm, stitch adjustable: 2mm-8mm
6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
7. Auto faults tips for servo motor system and transducer ,which is convenient to eliminate problems.
8. 360° quilting and limitless multi-span and independent quilting. (can do tack and jump patterns)
9. Steady running ,high speed, low noise, very thick material with precise quilting.
10. Ringing notice when start machine.
Specification:
| Product Name | Computer High speed Non-shuttle (chain stitch) Multi-needle Quilting Machine |
| Model |
YXN-94-3DS(3"+3") |
| Measurement(L*W*H) | 5m*1.6m*2m |
|
Weight |
8 tons |
| Quilting width | 2.4m |
| Needle bar space | 76.2,76.2(3"+3") |
| Quilting thickness | ≤8cm |
| Rolling speed | 600-1500 rpm |
| Needle type | #21 / #22 / #23 / #24 |
| X-axis movement | 410mm |
| Needle space | 1 inch |
| Stitch | 2mm-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 8500W |
Warranty and Installation:
1.Give extra free spare part when ship with the machine.
2. Offer manual, pattern book, installation video and step by step instruction if meet problems.
3. If need field installation or repairing machine, client should bear tickets, food, hotel and labor cost $100/day.
4. Within a year if part is broken, the supplier can replace part for free. Damage resulting from buyer's wrong operation / actions without supplier's guide / force majure is not in the scope of the warranty. (note hook, looper, needles, lamp is not in the scope of the warranty
