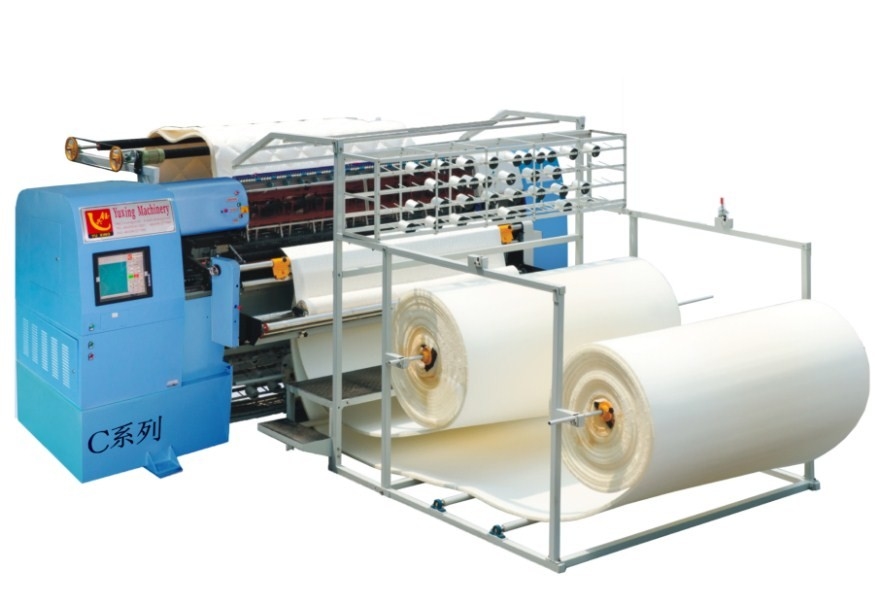

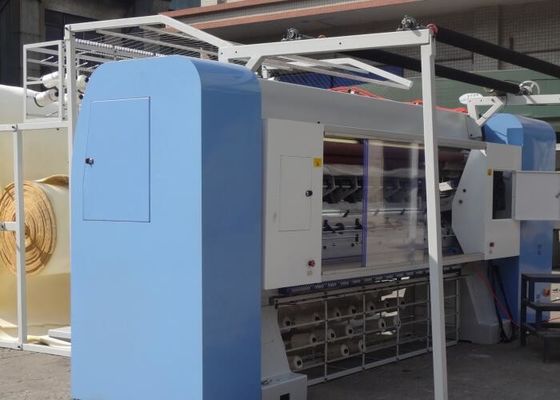

2.4m Industrial Chain Stitch Quilting Machine For Mattress

2.4m Industrial Chain Stitch Quilting Machine For Mattress

2.4m Industrial Chain Stitch Quilting Machine For Mattress
2.4m Industrial Chain Stitch Quilting Machine For Mattress
2.4m Industrial Chain Stitch Quilting Machine For Mattress
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-3C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Machine Size: 5m*1.6m*2m Rolling Speed: Max. 900 RPM
Quilting Thickness: 8cm Foam/padding Application: Mattress/quilt/comforter/bed Sheet/carpet/cushion
Needle No.: 3 Needle Bar Warranty: 1 Year For Main Part
High Light:

2.4m Quilting Machine

,

900 RPM Quilting Machine

,

900RPM Mattress Quilting Machine

2.4M Industrial Chain Stitch Quilting Machine Computerized Sewing Machine For Mattress



YXN-94-3C is the classic model of chain stitch quilting machine. It has all the basic function for quilting mattress, price is  cost-effective.

Spee fast, low vibration, varies of patterns to choose, auto stop function and thread trimming function, tack and jump, maximum 8cm sewing thickness.



Advantages:

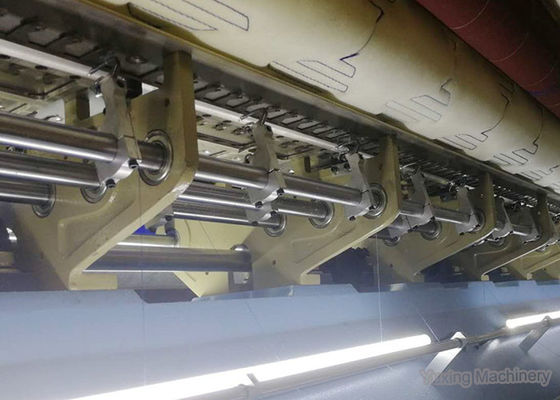

  • High rigidy machine body, precise liner guide rail, and double swing structure needle racker
  • Main principal axis is driven by requency converter, and X,Y axis driving by Japan famaous brand servo motor
  • 360 degree sewing, multi span and tack & jump
  • Auto stop function.
  • Machine automatic stop when pre-set output is finished, which is more convenient for operation.
  • Japan or German brand core bearings and precise casting parts prolongs the machine lifetime.
  • Test all sensors work status by computer, which is convenient for machine malfunction.
  • Newly upgrade computer system, adjust speed without stop machine, compatible to embroidery patterns.
  • Convenient for program upgrade, friendly customer interface, easy operation.
  • Stably runing, even very thick material, it can also performed well with precise designs.



Specification:



Product Name Computer Non-shuttle Multi-needle Mattress Quilting Machine
Model

YXN-94-3C (3"+3")

Dimension (L*W*H) 4800MM*1600MM*2000MM
Gross Weight 4500kg
Work width 2485MM
Needle bar distance 50.8,76.2,(2"+3");76.2,76.2(3"+3")
Sewing thickness 80MM
Main shaft speed 600-900 (roll/minute)
Output 10-200 (meter/hour)
Suitable Needle Size #21, #22, #23, #24
X-axis movement 10 inch
Needle space 25.4MM
Stitch 2MM-8MM adjustable
Rated voltage(AC) 3 phase 380V/50HZ,/220V/60HZ
Total Power 7KW

2.4m Industrial Chain Stitch Quilting Machine For Mattress 0

Design show



2.4m Industrial Chain Stitch Quilting Machine For Mattress 1
