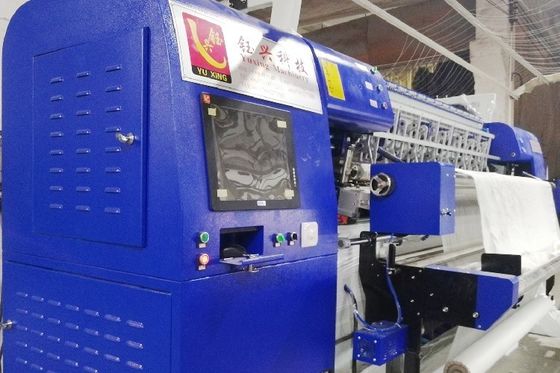

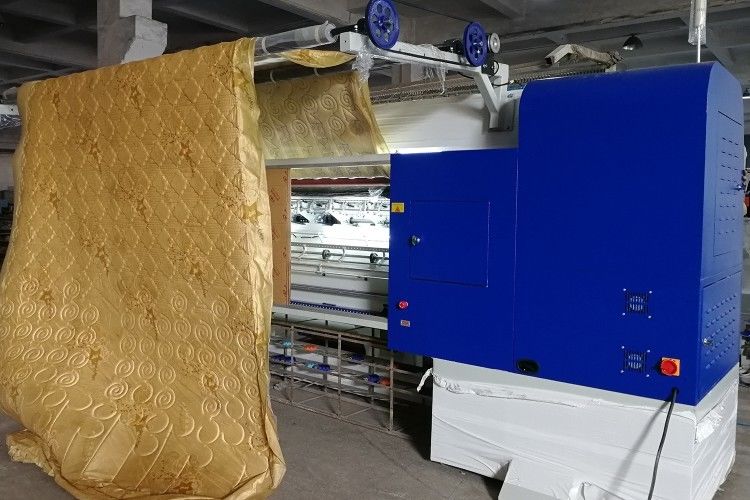

4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine

4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine

  • 4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine
  • 4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine
4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE, ISO9001
Model Number: YXN-94-4D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 20 Days
Payment Terms: T/T, L/C
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Application: Quilt/mattress/carpet/cushions Yield: Maximum 250m/hour
Rolling Speed: 600-1200 RPM L*w*h: 5000*1650*2000 MM
Needle Bar: 4 Bars Stitch: 2-8 MM
High Light:

250m/h Chain Stitch Quilting Machine

,

2.45m Quilting Machine

,

1200r/min Chain Stitch Quilting Machine

4 Needle Bar Multi-Needle Chain Stitch Quilting Machine For 16 Inch Designs





Specification:

Model name YXN-94-4D
Dimension(L*W*H) 5.0*1.65*2.0m
Gross Weight 4.8 tons
Quilting width 2.45m
Needle bar space 4 bars (2"+3"+3" )
Quilting thickness 8cm
Main shaft rolling speed 600-1200r/min
Throughput 10-250m/hour
Needle type #21-- #24
X-axis movement 410mm
Needle space 25.4mm
Stitch adjustable 2-8mm
Rated voltage(AC) 380V/50HZ 220V/60HZ
Power required 7.5KW



Function

  1. Adopt the advance process design and upgrade computer system.
  2. Needle bar and pressing block take the double rocker, avoid the materials be soiled by lube.
  3. Anti-vibration hopper and fabric feeding-in tension motor to adjust fabric tension for different kind fabric.
  4. High rigidity machine body, perfect protecting equipment and steady-going control system.
  5. X,Y motors are driven by servo system, and main motor takes servo motor too.
  6. Thread break dectector and auto stop system. Auto lift needle and adjust the speed by computer.
  7. Auto fauls tips for servo motor system and test signal of sensors, which is convenient to eliminate problems.
  8. 180degree and 360 degrees quilting, imitless multi-span, can make tack and jump patterns.
  9. Sready running, high speed, low noise, very thick material with precise quilting.
  10. Ringing notice and infrared system to protect operater from hurt.

4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine 0

Scheme



4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine 1

Designs

4 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine 24 Needle Bar 16 Inch Multi Needle Chain Stitch Quilting Machine 3
