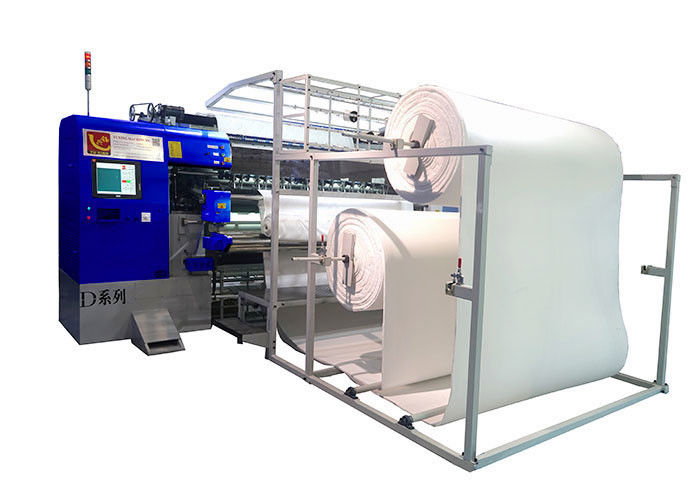

High Efficiency 1200RPM 2.4M Mattress Quilting Machine

High Efficiency 1200RPM 2.4M Mattress Quilting Machine

    • High Efficiency 1200RPM 2.4M Mattress Quilting Machine
    • High Efficiency 1200RPM 2.4M Mattress Quilting Machine
    • High Efficiency 1200RPM 2.4M Mattress Quilting Machine
    • High Efficiency 1200RPM 2.4M Mattress Quilting Machine
  • High Efficiency 1200RPM 2.4M Mattress Quilting Machine

    Product Details:

    Place of Origin: China
    Brand Name: Yuxing
    Certification: CE ISO9001
    Model Number: YXN-94-3D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Export packing
    Delivery Time: 15 Days
    Payment Terms: T/T, L/C
    Supply Ability: 20 SETS/MONTH
    Contact Now
    Detailed Product Description
    L*W*H: 5000*1650*2000 MM Capacity: Maximum 250m/hour
    Tack & Jump: Yes Move Style: Frame Moved
    Weight: 6500 KG Quilting Thickness: Max. 8CM
    Auto Stop: Yes, When Thread Broken Thread Trimming: Yes
    High Light:

    1200RPM Mattress Quilting Machine

    ,

    2.4M Mattress Quilting Machine

    ,

    250m/hour Mattress Quilting Machine

    High Efficiency Multi Needle Quilting Machine For Mattress 1200RPM Speed 2.4M Width



    Strength of multi needle quilting machine for mattress

    1. Machines servo motors and drives are from Japan, main motor adopt servo motor instead of frequency converter.

    2. Multi-span and independent quilting with pattern compensation function.

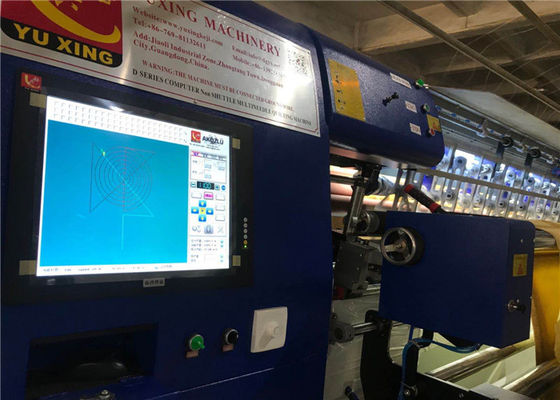

    3. Computer can be in store 1000 patterns with about 200 patterns already existing,and have pattern editing function.

    4. new upgrade computer system to help machine work more stable, speed faster.

    5. High rigidy machine body, low noise, easy operation.



    Application:

    It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.



    Specification:

    Product Name Computer High speed Non-shuttle (chain stitch) Multi-needle Quilting Machine
    Model YXN-94-3D(3"+3")
    Size(L*W*H) 500cm*165cm*200cm
    Weight 6500kg
    Width of quilting  245cm
    Distance between needle row 152.4(3"+3")
    Quilting thickness Max. 8cm
    Rolling speed 600r/min-1200 r/min
    Recommend needle model #21-#24
    X-axis movement 41cm
    Distance between needles  1 inch
    Stitch  2mm-8mm
    Rated voltage(AC) 380V/50HZ,/220V/60HZ
    Total power 7500 Watts


    Function:
    1. Adopt the advanced process design.

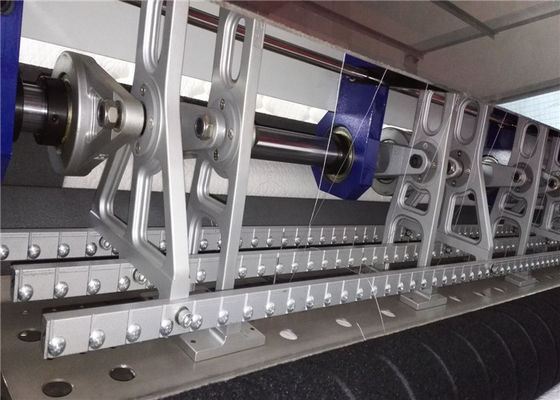

    2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
    3. High rigidity machine body, perfect protecting equipment and steady-going control system.
    4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.
    5. Test the working state of all sensors and computer in real time.
    6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.
    7. Auto faults tips for servo motor system and transducer ,which is convenient to eliminate problems.
    8. 360° quilting and limitless multi-span and independent quilting. (can do tack and jump patterns)
    9. Steady running ,high speed, low noise, very thick material with precise quilting.
    10. Ringing notice when start machine.



    High Efficiency 1200RPM 2.4M Mattress Quilting Machine 0

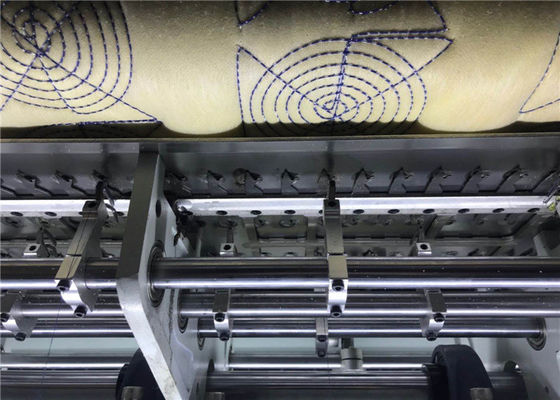

    Pattern show

    High Efficiency 1200RPM 2.4M Mattress Quilting Machine 1
