Place of Origin: | China |
Brand Name: | Yuxing |
Certification: | CE ISO9001 |
Model Number: | YXS-118-3CS |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Export packing |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 25 SETS/MONTH |
L*W*H:: | 5100*1500*1700 | Quilting Width: | 3 Meter |
---|---|---|---|
Stitch Length: | 2-8 MM | Sewing Speed: | Maximum 1000rpm |
Sewing Thickness: | Maximum 650gsm | Condition: | New |
Certification: | CE / ISO | Number Of Head: | Multi Needle |
High Light: | 1000rpm Multi Needle Quilting Machines,650gsm Multi Needle Quilting Machines,210m/h Multi Needle Quilting Machines |

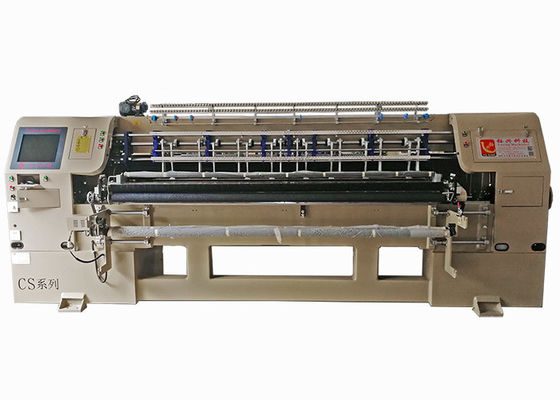

Fast Speed Computer Multi Needle Quilting Machines For Bedspread 118 Inch
Description
CS series 1000rpm multi needle quilting machine compared to the C series machine and other 800rpm common machine in market, it has below strength. The speed can reach 1000rpm, faster on output. It adopts the upgraded computer system, and adopts encoder instead of speed optocoupler, which ensures the machine works more stably with precise design sewing effect. Besides, the machine body reinforced, which help machine works with less vibration.
Quilting machine application
Specification:
Model name | YXS-118-2CS/3CS |
Size(L*W*H): mm | 5100*1500*1700 |
Weight | 5.2 ton |
Suitable fabric width | maximum 3000mm |
Distance between needle bar | 76.2(3") / 152.4(3"+3") |
Distance between needles | 25.4 |
X-axis movement | 304 |
Quilting thickness | ≤50 |
Stitch | 2-8 |
Expected Output | 10-210m/h |
Needle model | #14,#16,#19 |
Shaft rolling speed | 500-1000rpm |
Voltage(AC) type | 380V/50HZ, 220V/60HZ |
Power | 7.5KW |
Function:
Designs
Package and shipment
