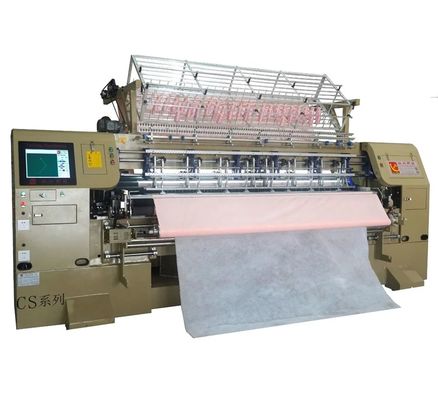

Low Vibration 96 inch Commercial Quilting Machine For Comforter

Low Vibration 96 inch Commercial Quilting Machine For Comforter

Low Vibration 96 inch Commercial Quilting Machine For Comforter
Low Vibration 96 inch Commercial Quilting Machine For Comforter
Low Vibration 96 inch Commercial Quilting Machine For Comforter
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE IOS9001
Model Number: YXS-96-3CS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/month
Contact Now
Detailed Product Description
Product Name: Comforter Quilting Machine Quilting Width: 96 Inch
Output: Maximum 210m/hour Speed: 500-1000r/min
Quilting Thickness: Max. 50 MM Moving Style: Frame Move
Needle Row: 3 Rows Machine Type: Lock Stitch Quilting Machine
Highlight:

800r/min Commercial Quilting Machine

,

195m/hour Commercial Quilting Machine

,

380V Commercial Quilting Machine

Low Vibration Computerized Multi Needle Commercial Quilting Machine For Comforter



The model YXS-94-3C is old model, price is cheaper. The performance of the machine is stable.

This commercial quilting machine can be used for sewing fabric and padding together with different designs. The finished product is like jackets, pajamas, night gown; bed cover, bed sheet, quilt, blanket, comforter, bedspread, pillow case; cushions, seat covers, gloves, bags.

Specification:

Product Name Computerized Shuttle Multi-needle Quilting Machine
Model YXS-96-3CS(3”+3”)
Dimension(L*W*H) 4.6m*1.5m*1.7m
Weight 5000 kilos
Sewing width 2.45m
Needle row space 3 rows 152.4mm
Sewing thickness maximum 5cm. Thicker fabric need to be customized
Running speed maximum 1000r/min
 yield 10m-210m one hour
Needle model #14, #16,#19 German needle
X- axis maximum movement 254mm
Space between Needles 1 inch
Stitch  2mm-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Total Power 6.5KW

Low Vibration 96 inch Commercial Quilting Machine For Comforter 0

Functions:

  • X, Y axis take servo motors, main axis is driven by frequency.
  • Tack and jump, multi-span independent pattern (360°and 180° patterns are available).
  • Needle bar and press plate are connected by double-swinging needle bar frame, avoiding the fabric is ruined by oil during machine running.
  • Compensation by adjust computer program parameter, which is easy to solve the pattern out of shape problem for thick material.
  • Easy to draw design on computer program, new designs can be input by connecting usb.
  • Practical thread-break detection. When thread used up or broken, machine auto stop.
  • Infrared system can protect operation from hurting and stop machine soon.

Low Vibration 96 inch Commercial Quilting Machine For Comforter 1

Pattern and application

Low Vibration 96 inch Commercial Quilting Machine For Comforter 2

Low Vibration 96 inch Commercial Quilting Machine For Comforter 3
