| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-96-3D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 25 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 set/month |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Max Running Speed: | 1200r/min | Quilting Width: | 2450mm |
| Capacity: | 10-240m/h | Usage: | Garments / Bedding Product / Cushions |
| High Light: | 6.5KW Multi Needle Quilting Machine,1200r/min Multi Needle Quilting Machine,Garments Computerised Quilting Machine |
||

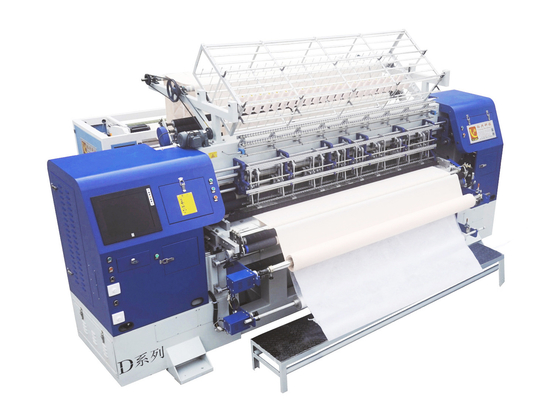

Industrial Computerized Multi Needle Quilting Machine For Duvet
Except the work width 96 inch, we also have other work width of machine.
Specification
| Model parameter(mm) | YXS-64-2D/3D | YXS-82-2D/3D | YXS-96-2D/3D | YXS-118-2D/3D | YXS-128-2D/3D |
| Size:L*W*H | 3935*1750*1700 | 4425*1750*1700 | 4730*1750*1700 | 5340*1750*1700 | 5590*1750*1700 |
| Weight | 4800KG | 5200KG | 5800KG | 6200KG | 6600KG |
| Quilting width | 1700 | 2100 | 2450 | 3000 | 3200 |
| Needle bar space | 76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
| Needle space | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| X-axis movement | 204 | 254 | 254 | 304 | 304 |
| Quilting thickness | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
| Stitch | 2-8 | 2-8 | 2-8 | 2-8 | 2-8 |
| Output | 10-240m/h | 10-240m/h | 10-240m/h | 10-240m/h | 10-240m/h |
| Needle type | #14,#16,#19 | #14,#16,#19 | #14,#16,#19 | #14,#16,#19 | #14,#16,#19 |
| Rolling speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Rated voltage(AC) | 380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
| Power | 4KW | 5.5KW | 6.5KW | 7.5KW | 7.5KW |
Function:
1. Upgraded computer control system and mechanical manufacturing process technology.

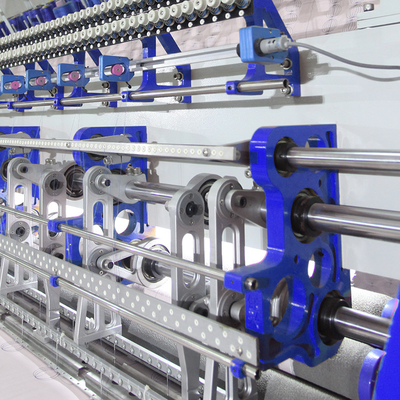

2. Needle bar frame structure is more firm and durable, the cost of maintenance is cheaper.
3. The needle bar running with needle bar frame, no need to add extra lube and avoid the materials be soiled by lube.
4. Adopt sadding rack guide rail, steady running, patterns are more precise, lower thread break rate.
5. Both the saddle frames and the rollers are imported servo drive equipment.
6. Principal axis adpot the frequency conversion device.
7. Adjust speed by computer and the speed can reach 500-1200RPM, the stitch stitch can be set between 2-8mm.
8. Adopt the mouse make pattern directly and compatible with embroidery file format(DST DSB).
9. 360° random quilting and limitless multi-span and independent quilting.
