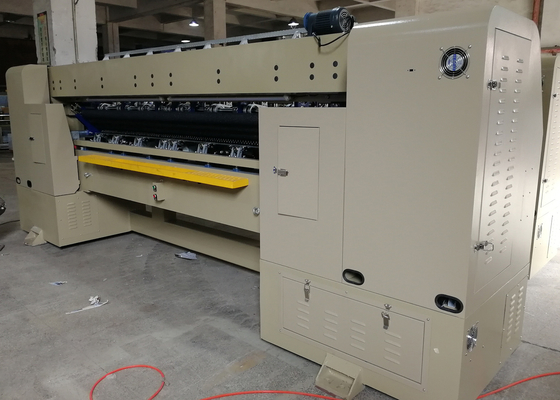

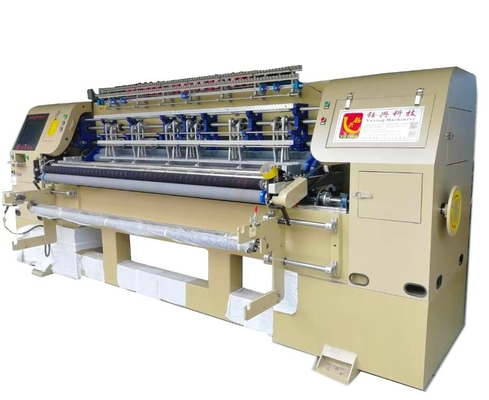

94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket

94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket

  • 94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket
  • 94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket
  • 94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket
  • 94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket
  • 94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket
94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket
Product Details:
Place of Origin: China
Brand Name: Yuxing
Certification: CE ISO9001
Model Number: YXS-96-3CS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS/MONTH
Contact Now
Detailed Product Description
Quilting Width: 94 Inch / 240cm Main Shaft Speed: Maximum 1000rpm
L*W*H: 4600*1500*1700 Needle Row: 3 Rows
Weight: 5 Tons Sewing Thickness: Maximum 650gsm
Stitch Size: 2mm-8mm Color: Champagne
High Light:

1000rpm Multi Needle Quilting Machine

,

Blanket Multi Needle Quilting Machine

,

94 Inch Industrial Quilting Machine

94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket

lock stitch quilting machine catalog download

lockstitch quilting machine catalog.pdf

Application for Industrial Multi Needle Quilting Machine


This quilting machine can be used for sewing fabric and padding together with different designs. The finished product is like jackets, pajamas, night gown; bed cover, bed sheet, quilt, blanket, comforter, bedspread, pillow case; ushions, seat covers, gloves, bags.



Other models available:



1) Based on different work width : 64", 82",  118", 128" .

2) Based on needle bar quantity: 3 needle row quilting machine and 2 needle row quilting machine both can be chosen.

3 needle row machine can make bigger size design, usually for home textile factory. 2 needle row machine make small size design, usually for garments factory.

3) Based on shuttle size: Each machine can make as 10# bobbin or 7# bobbin.

10# bobbin load about 30m longer thread than 7# bobbin. So more home textile factory choose #10, and for garment factory to pursue more precise design, we suggest #7 bobbin.



Specification:



Model number YXS-96-2CS/3CS
Size(L*W*H): cm 460*150*170
Weight 5 tons
Suitable fabric width maximum 245cm
Distance between needle rows 76.2(3") / 152.4(3"+3")
Distance between needles 25.4
X-axis maximum movement 25.4cm
Padding thickness ≤50
Stitch 2mm-8mm
Expected yield 10-210m/h
Needle suitable #14,#16,#19
Running speed 500-1000rpm
Voltage 380V/50HZ,
220V/60HZ
Power consumable 6500W



Feature

  • Machine body and foot are reinforced. More stably on running.
  • Adjust speed by computer 500r-1000r/min, set different stitch length(2mm-8mm) from computer .
  • New upgraded computer system, compatible with embroidery file format(DST/DSB)
  • Pattern compensation function is an effective solution for looping pattern with thick material.
  • Auto stop sensor detect thread condition, when thread broken, machine automatically stop.
  • 180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.
  • Add refueling system to prolong machine bearing lifespan.
94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket 0
94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket 1

Application

94 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket 294 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket 394 Inch 1000rpm Industrial Multi Needle Quilting Machine For Blanket 4
