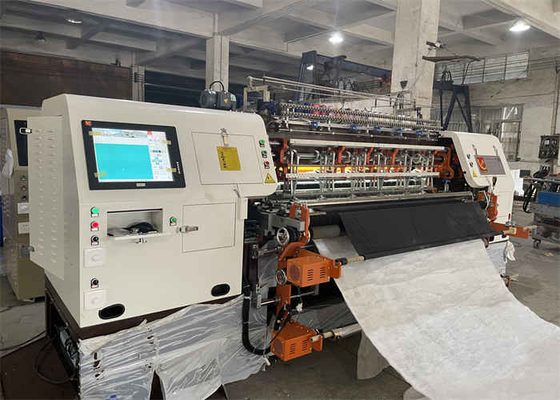

Garments 1600MM Computerized Quilting Machine Multi Needle Lock Stitch

MOQ: 1 set
Price: Negotiable
Standard Packaging: film packing
Delivery Period: 15 workdays
Supply Capacity: 20 sets/momth
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yuxing
Certification
CE
Model Number
YXS-66-2D#7
Warranty:
One Year For Main Part
Voltage:
As Request
After-sales Service Provided:
Video Technical Support
Max Sewing Speed:
1200 RPM
Number Of Head:
Multi Needle
Weight:
4450kg
Dimension(l*w*h):
3935*1750*1700 Mm
Power(w):
4kw
Highlight:

Lock Stitch Quilting Machine CE

,

1600MM Computerized Quilting Machine

,

1200RPM Lock Stitch Quilting Machine

Product Description

66 inches computerized multi-needle shuttle quilting machine



lockstitch quilting machine catalog.pdf



Function:

1. The speed of quilting is controlled by the computer and can reach 1200rpm/min.
2. Needle row movement adopts aluminum alloy needle bar frame structure which doesn’t need to refuel, and will be strong and durable.
3. The saddle frame and roller adopt servo drive equipment, and the spindle adopts frequency conversion control;
4. Adopt high precision and high rigidity imported screw rod;
5. 360°arbitrary quilting and unlimited independent pattern step quilting;
6. Automatic stop function when the upper thread is broken;
7. Infrared induction makes the operation safer



Product Name High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine
Model YXS-66-2D
Size(L*W*H) 3935*1400*1700 mm
Weight 4450kg
Quilting width 1650mm
Needle bar space 3” (76.2mm)
Quilting thickness ≤50mm
Rolling speed 500-1200r/min
Output 0-240m/hour
Needle type #14,#16,#19
X-axis movement 254mm
Needle space 25.4mm
Stitch 2-8mm
Rated voltage(AC) 380V/50HZ,/220V/60HZ
Power 4KW



Pattern:



Garments 1600MM Computerized Quilting Machine Multi Needle Lock Stitch 0



Garments 1600MM Computerized Quilting Machine Multi Needle Lock Stitch 1



Garments 1600MM Computerized Quilting Machine Multi Needle Lock Stitch 2
