| Place of Origin: | China |
| Brand Name: | Yuxing |
| Certification: | CE |
| Model Number: | YXS-96-2D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic film or wooden box packing |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 set/month |
| Needle Bar Quantity: | 2 Rows / 3 Rows | Max Running Speed: | 1200r/min |
|---|---|---|---|
| Quilting Width: | 2450mm | Yield: | 10-240m/h |
| Warranty: | 12 Months | Usage: | Bedding Product |
| High Light: | 1200rpm Computerized Sewing And Quilting Machine,Multi Needle Computer Quilting Machine,Bed Multi Needle Computer Quilting Machine |
||

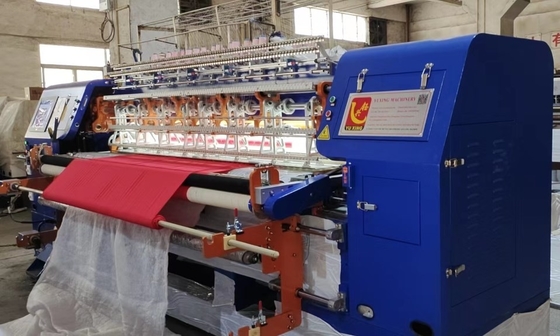

D series computer high speed quilting machine is our high end series machine, work speed can reach maximum 1200rpm. It uses new computer system, high rigidy machine structure, automatic oil lubrication system.
Specification of Multi Needle Quilting Machine
| Model name(mm) | YXS-64-2D/3D | YXS-82-2D/3D | YXS-96-2D/3D | YXS-118-2D/3D | YXS-128-2D/3D |
| Measurement:L*W*H | 3935*1750*1700 | 4425*1750*1700 | 4730*1750*1700 | 5340*1750*1700 | 5590*1750*1700 |
| Weight | 4800KG | 5200KG | 5800KG | 6200KG | 6600KG |
| Work width | 1700 | 2100 | 2450 | 3000 | 3200 |
| Needle row distance | 76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
76.2(3")/ 152.4(3"+3") |
| Needle distance | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| X-axis movement | 204 | 254 | 254 | 304 | 304 |
| Quilting thickness | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
| Stitch | 2-8 | 2-8 | 2-8 | 2-8 | 2-8 |
| Output | 10-240m/h | 10-240m/h | 10-240m/h | 10-240m/h | 10-240m/h |
| Needle type | #14,#16,#19 | #14,#16,#19 | #14,#16,#19 | #14,#16,#19 | #14,#16,#19 |
| Work speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Rated voltage(AC) | 380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
380V/50HZ, 220V/60HZ |
| Power | 4KW | 5.5KW | 6.5KW | 7.5KW | 7.5KW |
Function:
1. Upgraded computer control system and mechanical manufacturing process technology.
2. Needle bar frame structure is more firm and durable, the cost of maintenance is cheaper.
3. The needle bar running with needle bar frame, no need to add extra lube and avoid the materials be soiled by lube.
4. Adopt sadding rack guide rail, steady running, patterns are more precise, lower thread break rate.
5. Both the saddle frames and the rollers are imported servo drive equipment.
6. Principal axis adpot the frequency conversion device.
7. Adjust speed by computer and the speed can reach 500-1200RPM, the stitch stitch can be set between 2-8mm.
8. Adopt the mouse make pattern directly and compatible with embroidery file format(DST DSB).
9. 360° random quilting and limitless multi-span and independent quilting.
Machine process finish photo
machine loading photo
