94 Inch Industrial Multi Needle Shuttleless Quilting Machine For Mattress Cover

MOQ:	1 SET
Price:	Negotiable
Standard Packaging:	Export packing
Delivery Period:	15 Days
Payment Method:	T/T, L/C
Supply Capacity:	20 SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Yuxing

Certification

CE ISO9001

Model Number

YXN-94-3D

Quilting Width:

2450 MM

Max Speed:

1200 R/MIN

Weight:

6500 KG

Quilting Thickness:

Tack And Jump:

Total Power:

7.5kw

Highlight:

94 Inch Shuttleless Quilting Machine

Shuttleless Quilting Machine

Industrial Shuttleless Quilting Machine

Product Description

8cm Sewing Thickness Industrial Multi Needle Shuttleless Quilting Machine 94 Inch

YXN-94-3D is upgrade model from YXN-94-3C. Speed is higher, machine structure and body is stronger, heavier and power higher .

(YXN-94-3D and YXN-4-3C both will use new upgrade software, quilting machine both models, X Y use Fuji servo

motor. YXN-94-3D main motor also use servo motor. YXN-94-3C main motor is not servo motor, using frequency

converter). Even 8cm thickness of material, machine can sewing with precise designs.

Suitable thread:

Upper thread: 210D/3; 150D/3 polyester thread

Bottom thread: 40S/2; 50S/2 spun polyester sewing thread

Application:

It is widely used for quilting fabric and foam together for high-quality mattress cover, or sewing fabric and wadding together for quilt covers, and household ornaments. Hundreds patterns can be chosen.

Specification:

Model	YXN-94-3D (3"+3")
Diamension(LWH)	5M1.6M2M
Weight	6.5 TONS
Quilting width	2485mm
Needle bar space	76.2(3"+3")
Max. sewingt thickness	8cm
Max. Rolling speed	1200 r/min
Needle type	#21 / #22 / #23 / #24
X-axis stroke	410mm
Needle space	25.4mm
Stitch size	2-8mm
Rated voltage(AC) 3 phase	380V/50HZ,/220V/60HZ
Total power	7.5KW

Function of shuttless quilting machine:
1. Computer operation is easy. Computer mouse draw pattern and usb connection for adding pattern.
2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.
3. High rigidity machine body, perfect protecting equipment and steady-going control system.
4. X,Y and main motors are driven by servo system.
5. Test the working state of all sensors and computer in real time.
6. Thread break dectation, auto-stop system when the bottom or upper thread broke by infrared.
7. Auto faults tips for servo motor system and transducer ,which is convenient for maintenance.
8. 360° quilting and limitless multi-span and independent quilting and tack and jump patterns
9. Steady running ,high speed, low noise, very thick material with precise quilting.

10. Auto lift needle and adjust the speed by computer.

Package and loading

Standard package: plastic film, and fixed into container with steel wire to protect machine from shaking during transportation.

Optional package: wooden case, clients need to bear the wooden case fee.

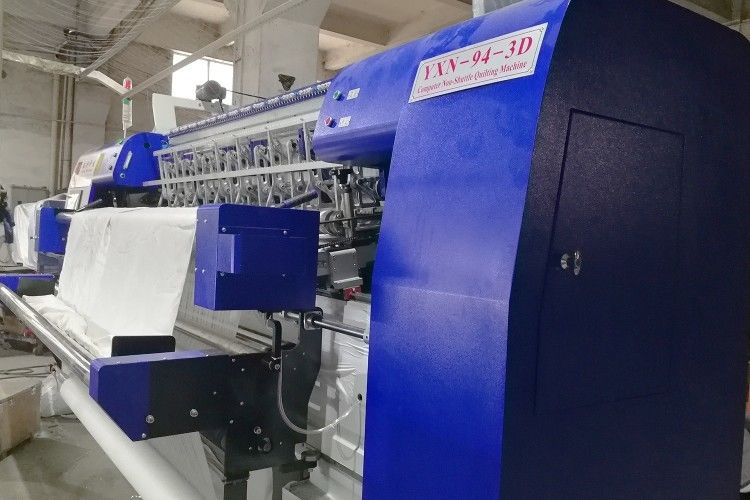

94 Inch Industrial Multi Needle Shuttleless Quilting Machine For Mattress Cover 0

Pattern show

94 Inch Industrial Multi Needle Shuttleless Quilting Machine For Mattress Cover 1
